Main Bearing Selection Table No. 2, and 4 journals)

WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

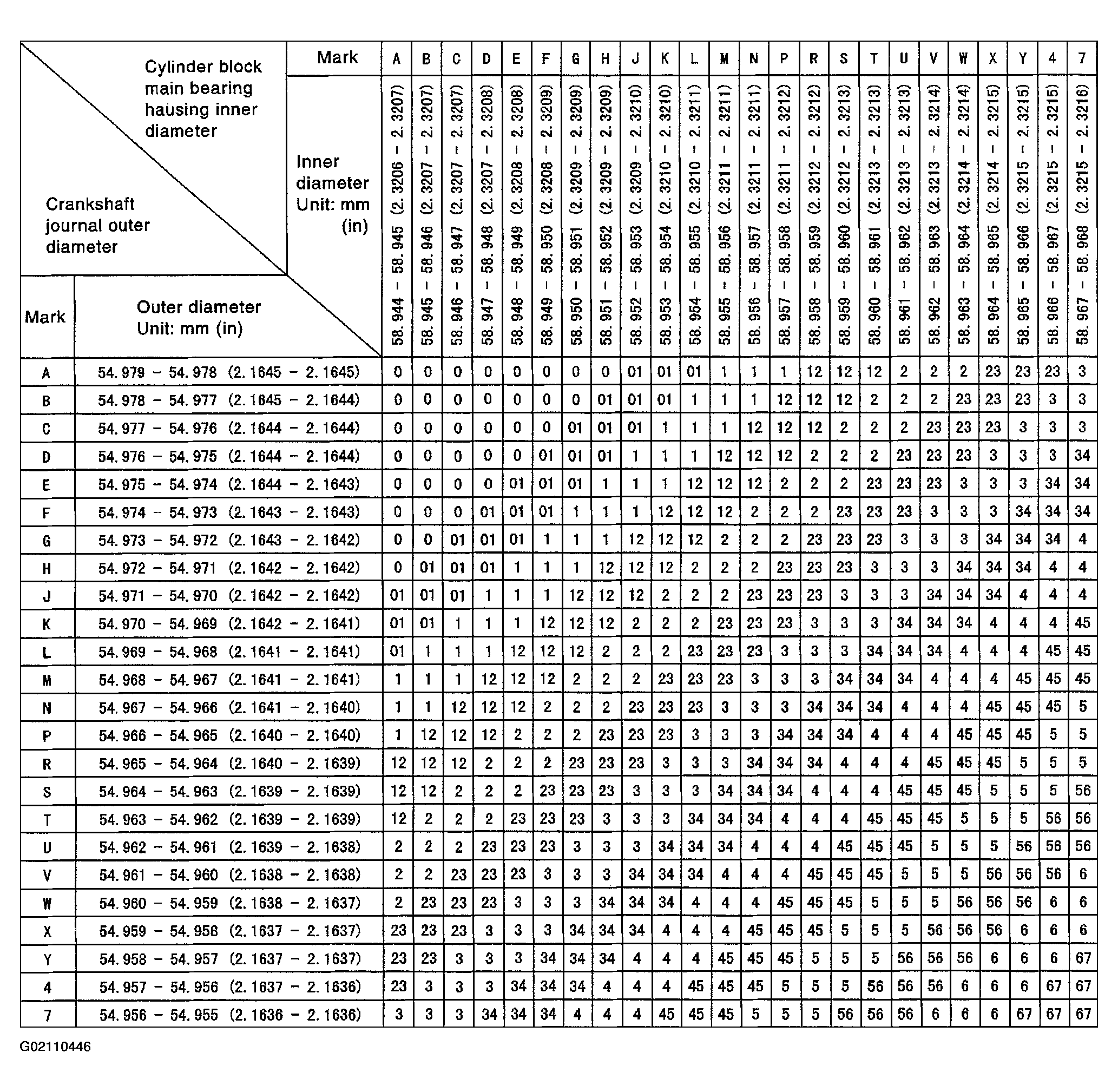

Fig 1: Main Bearing Selection Table No. 2, and 4 Journals)
G02110446Courtesy of NISSAN MOTOR CO., U.S.A.
