Main Bearing Selection Table (No. 1, 3, and No. 5 journals)

WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

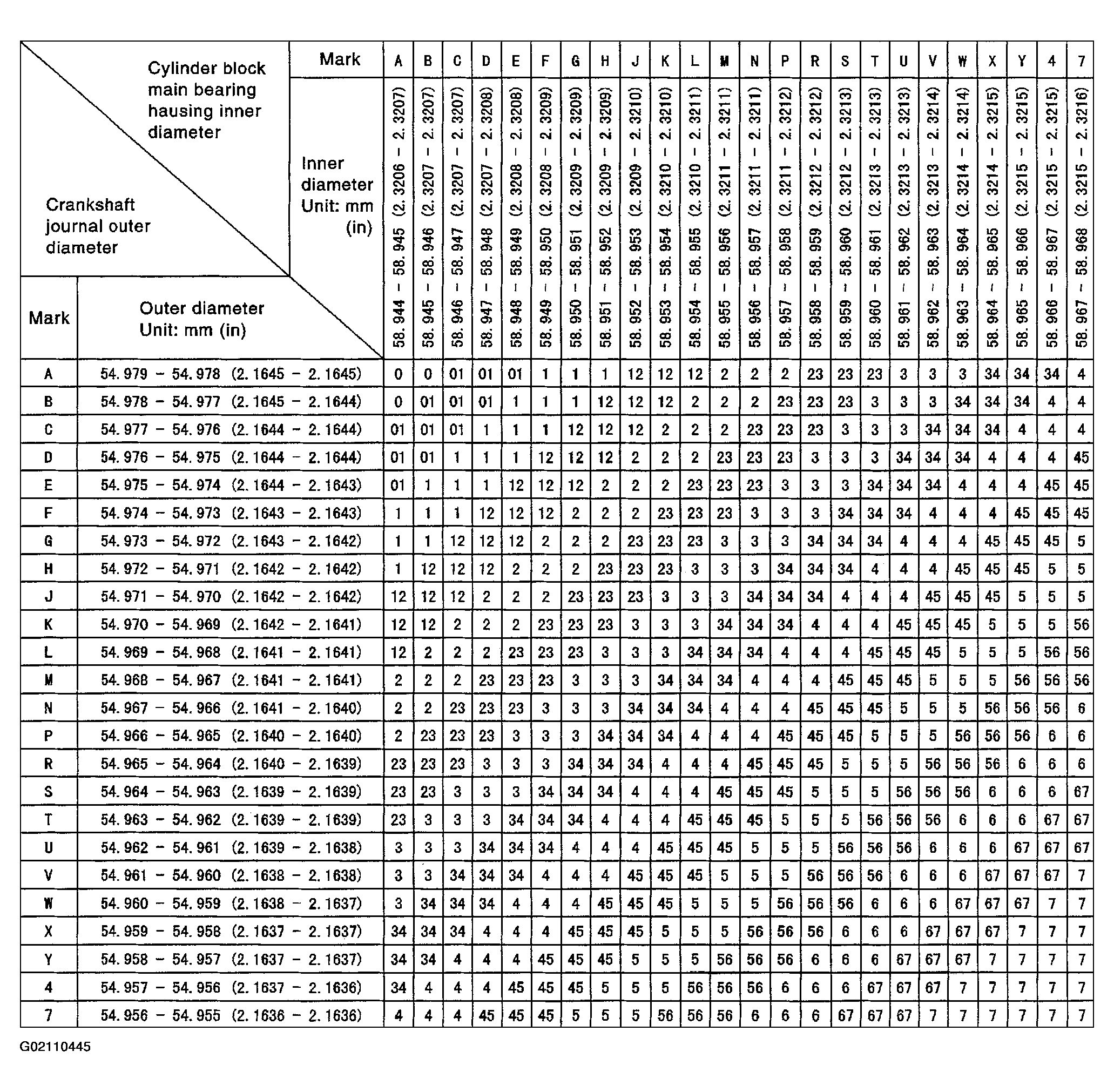

Fig 1: Main Bearing Selection Table (No. 1, 3, and No. 5 Journals)
G02110445Courtesy of NISSAN MOTOR CO., U.S.A.
