Bearing Undersize Table

WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

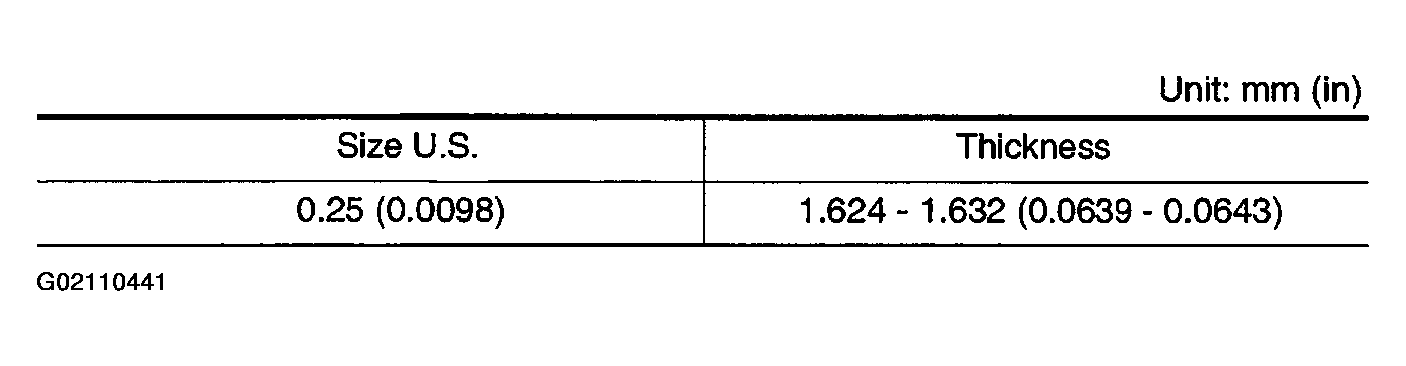

Fig 1: Bearing Undersize Table
G02110441Courtesy of NISSAN MOTOR CO., U.S.A.
CAUTION: In grinding the crankshaft pin to use undersize bearings, do not damage the fillet R (All crankshaft pins).

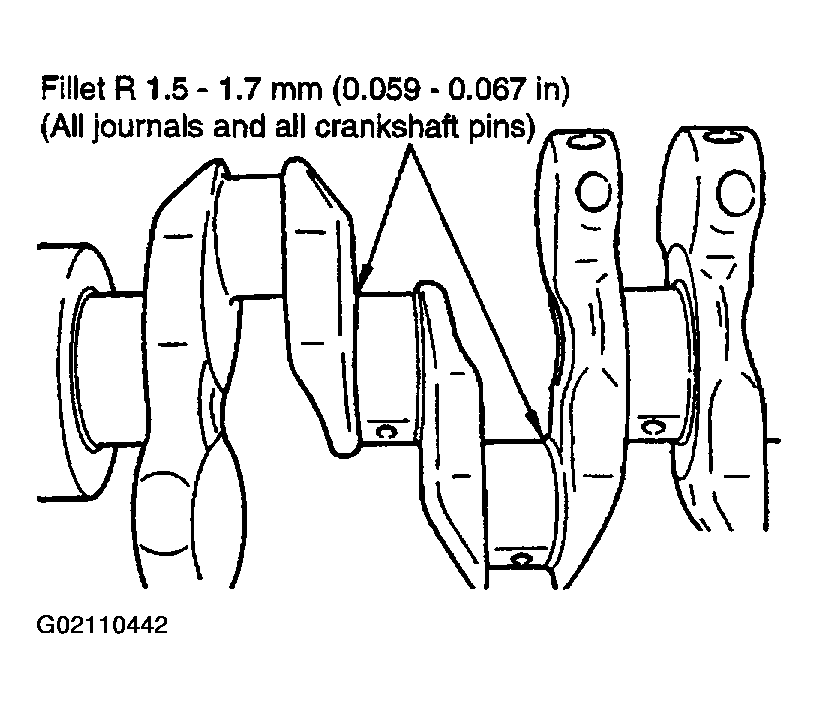

Fig 2: View Of Crankshaft Fillet
G02110442Courtesy of NISSAN MOTOR CO., U.S.A.
