Disassembly and Assembly: Notes

WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Flywheel removal may require use of special tool J-46531 (TP55 Torx Plus driver) for M/T flywheel bolts. See ESSENTIAL TOOL: TORX DRIVER FOR FLYWHEEL BOLTS for more information.

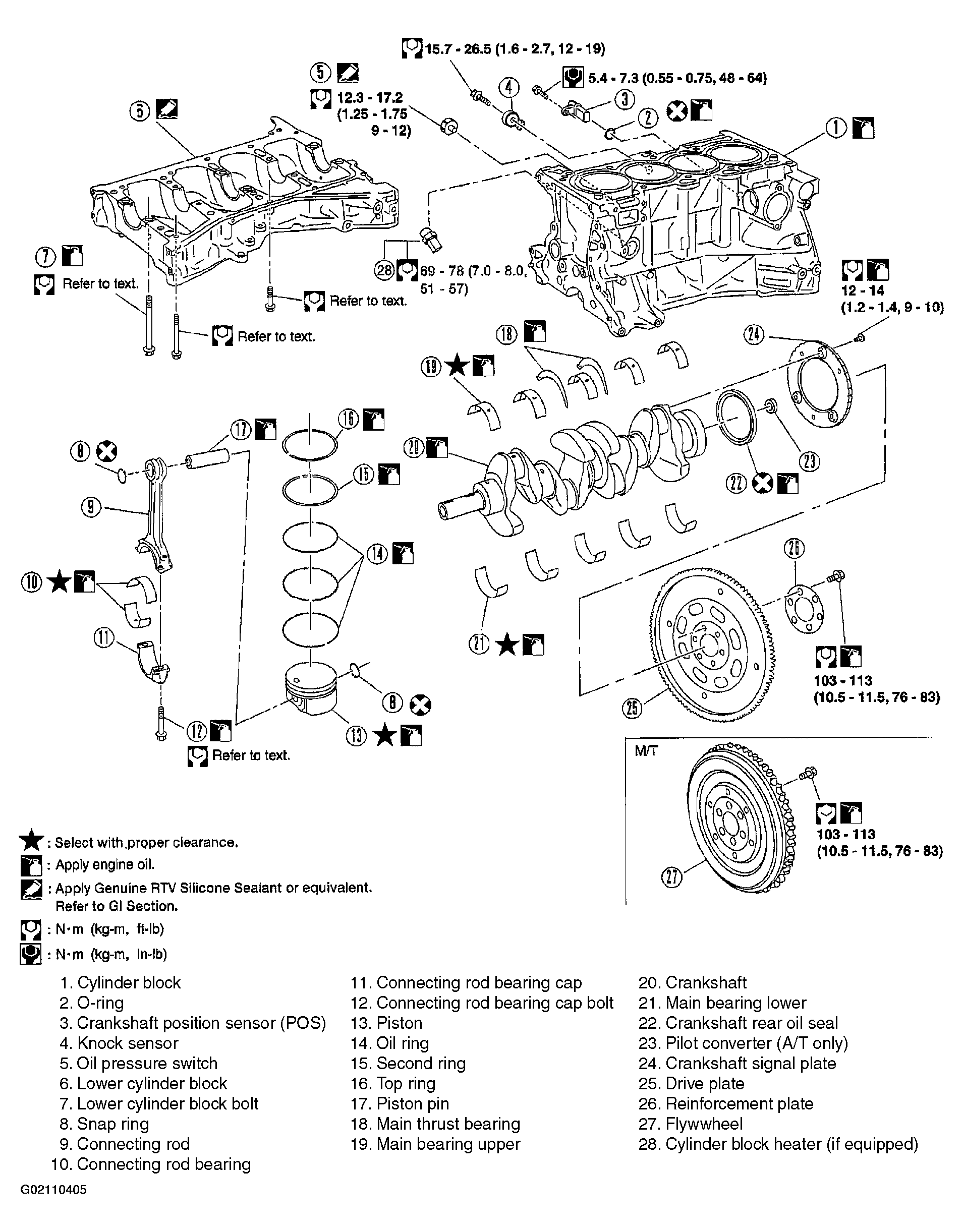

Fig 1: Exploded View Of Cylinder Block
G02110405Courtesy of NISSAN MOTOR CO., U.S.A.
CAUTION: Apply new engine oil to parts marked in illustration before installation.
