Removal and Installation: Installation

WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the valve lifter.
    • Install them in the same position from which they were removed.
  2. Install the camshafts.
    • The distinction between the intake and exhaust camshafts is in a difference of shapes of the back end:

      Intake: Signal plate for the camshaft position sensor (PHASE) Exhaust: Cone end shape

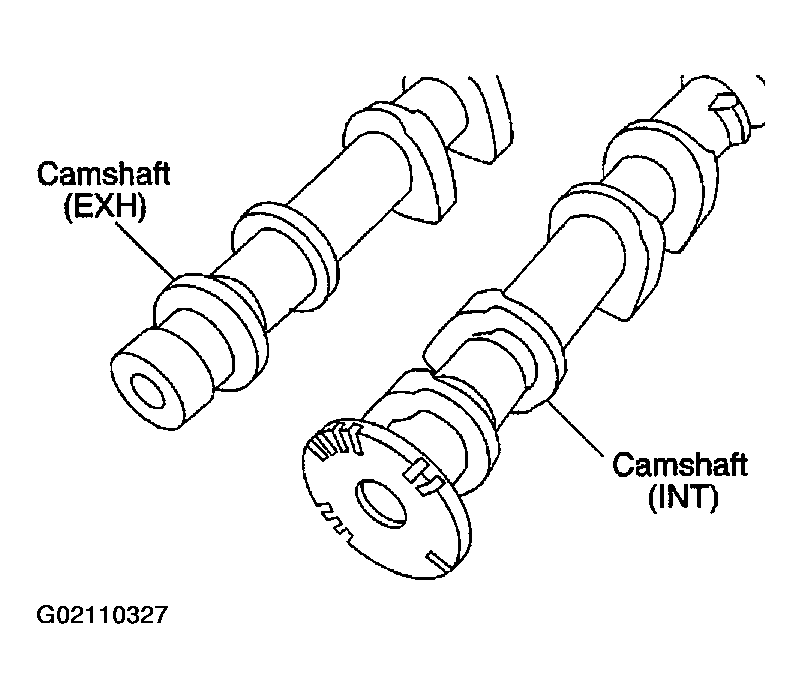

      Fig 1: Identifying Camshafts
      G02110327Courtesy of NISSAN MOTOR CO., U.S.A.
    • Install camshafts so that the dowel pins on the front side are positioned as shown.

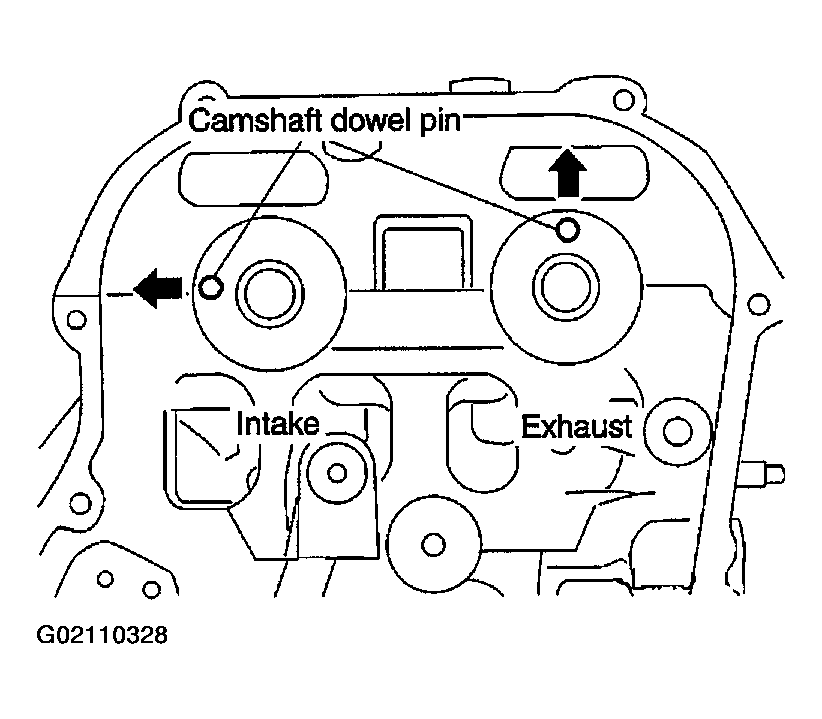

    Fig 2: Positioning Camshafts
    G02110328Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Install camshaft brackets.
    • Install by referring to identification mark on upper surface mark.
    • Install so that identification mark can be correctly read when viewed from the exhaust side.

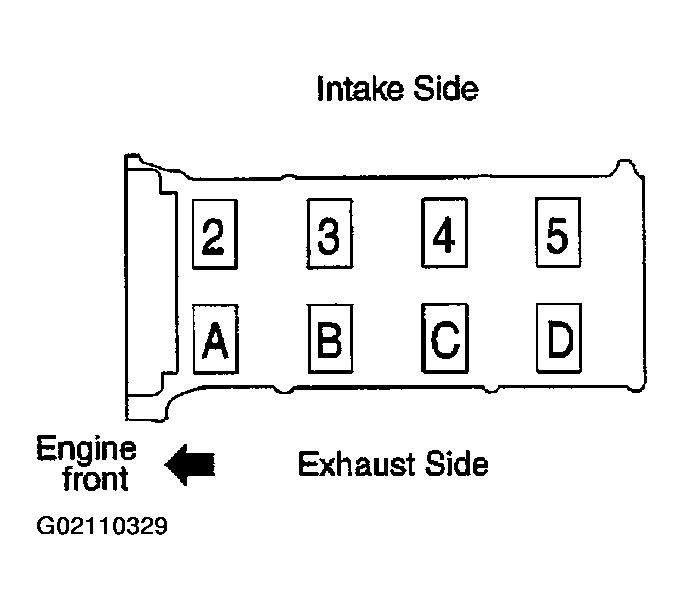

      Fig 3: Camshaft Bracket Placement
      G02110329Courtesy of NISSAN MOTOR CO., U.S.A.
    • Install No. 1 camshaft bracket as follows.
      • Apply sealant to No. 1 camshaft bracket as shown.

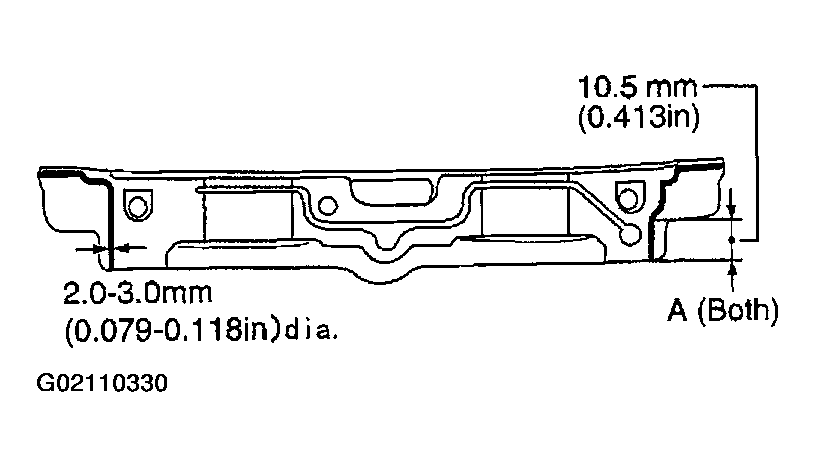

        • Fig 4: Applying Sealant To No. 1 Camshaft Bracket
        G02110330Courtesy of NISSAN MOTOR CO., U.S.A.
    • Use Genuine RTV Silicone Sealant, or equivalent. Refer to RECOMMENDED CHEMICAL PRODUCTS AND SEALANTS .
      CAUTION:
      • After installation, be sure to wipe off any excessive sealant leaking from part "A" (both on right and left sides).
    • Apply sealant to camshaft bracket contact surface on the front cover backside.

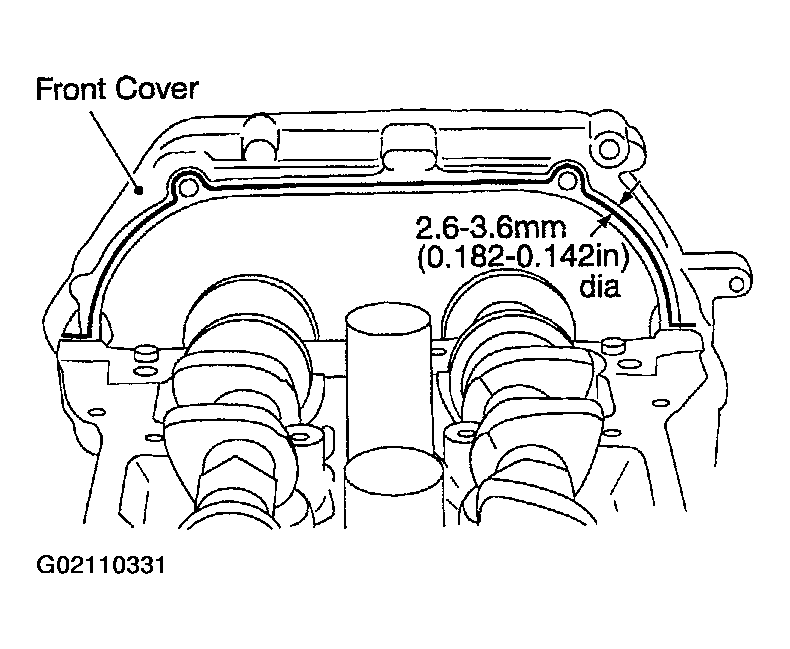

      • Fig 5: Applying Sealant To Camshaft Bracket Contact Surface
      G02110331Courtesy of NISSAN MOTOR CO., U.S.A.
    • Apply sealant to the outside of bolt hole on front cover.
    • Position the No. 1 camshaft bracket near the mounting position, and install it without disturbing the sealant applied to the surfaces.

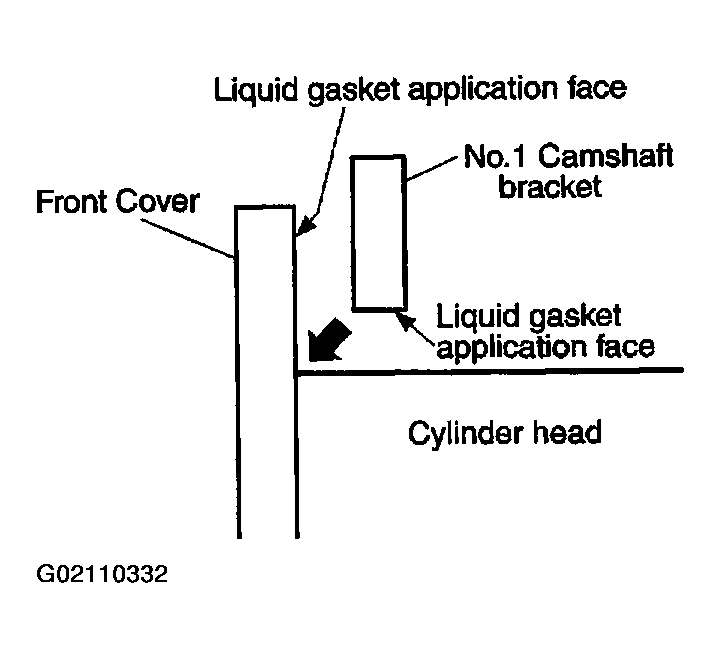

    Fig 6: View Of No. 1 Camshaft Bracket Installation
    G02110332Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Tighten fixing bolts of camshaft brackets as follows.
    1. Tighten in the order from 9 to 11 with tightening torque 2.0 N.m (0.2 kg-m, 17 in-lb).
    2. Tighten in the order from 1 to 8 with tightening torque 2.0 N.m (0.2 kg-m, 17 in-lb).
    3. Tighten all bolts in specified order with tightening torque 5.9 N.m (0.6 kg-m, 52 in-lb).
    4. Tighten in the order from 1 to 11 with tightening torque 9.0 to 11.8 N.m (0.92 to 1.2 kg-m, 80 to 104 in-lb).

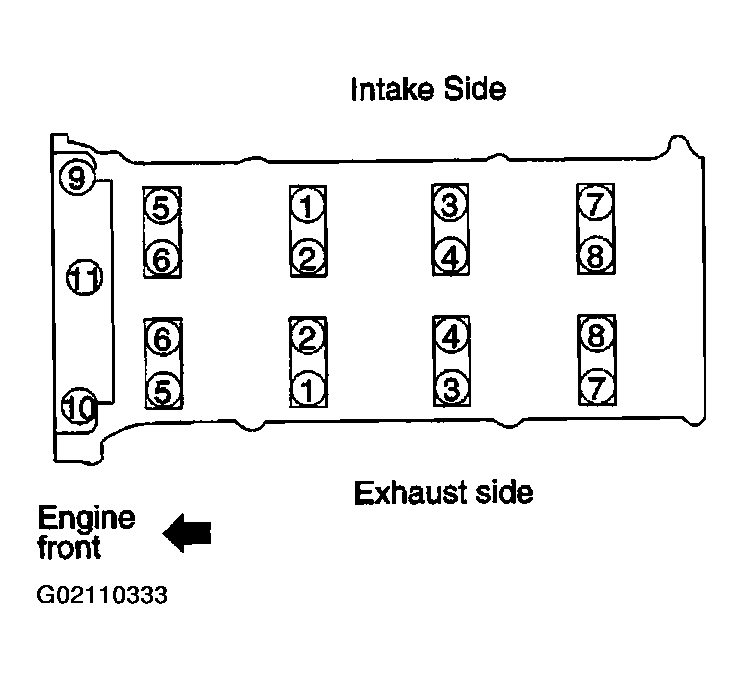

      5. Fig 7: View Of Camshaft Brackets Torque Sequence
      G02110333Courtesy of NISSAN MOTOR CO., U.S.A.
    CAUTION: After tightening fixing bolts of camshaft brackets, be sure to wipe off excessive sealant from the parts listed below.
    • Mating surface of rocker cover.
    • Mating surface of front cover, when installed without the front cover.
  5. Install camshaft sprockets.
    • Install them by lining up the mating marks on each camshaft sprocket with the ones painted on the timing chain during removal.
    • Before installation of chain tensioner, it is possible to re-match the marks on timing chain with the ones on each sprocket.

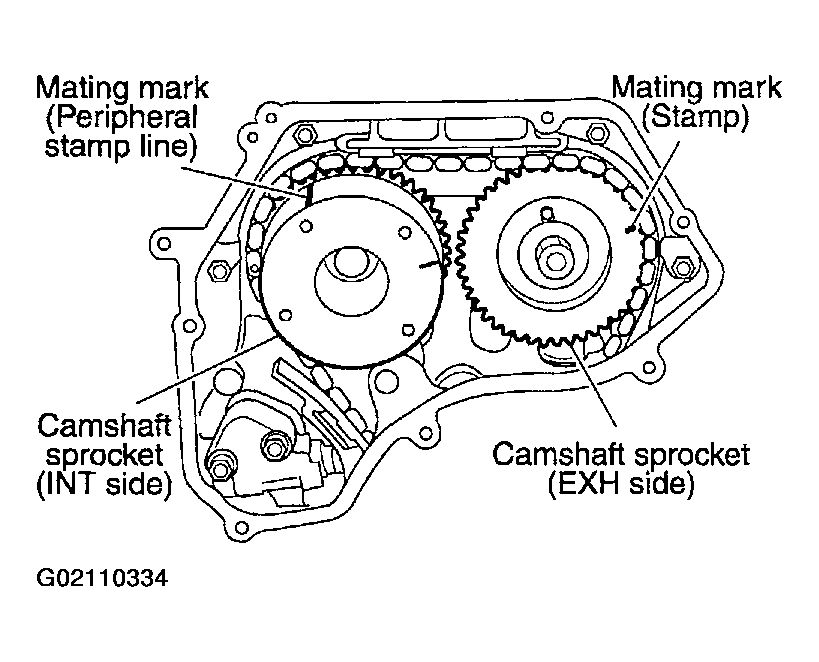

    Fig 8: View Of Mating Marks On Each Camshaft Sprocket
    G02110334Courtesy of NISSAN MOTOR CO., U.S.A.
    CAUTION:
    • Aligned mating marks could slip. Therefore, after matching them, hold the timing chain in place by hand.
    • Before and after installing chain tensioner, check again to make sure that mating marks have not slipped.
  6. Install chain tensioner.
    CAUTION:
    • After installation, pull the stopper pin off completely, and make sure that the tensioner is fully released.
  7. Install chain guide.
  8. Install IVTC (intake valve timing control) cover with the following procedure.
    1. Install IVTC solenoid valve to intake valve timing control cover.
    2. Install O-ring to front cover side.
    3. Apply Genuine RTV Silicone Sealant to the positions shown in the figure. Refer to RECOMMENDED CHEMICAL PRODUCTS AND SEALANTS .

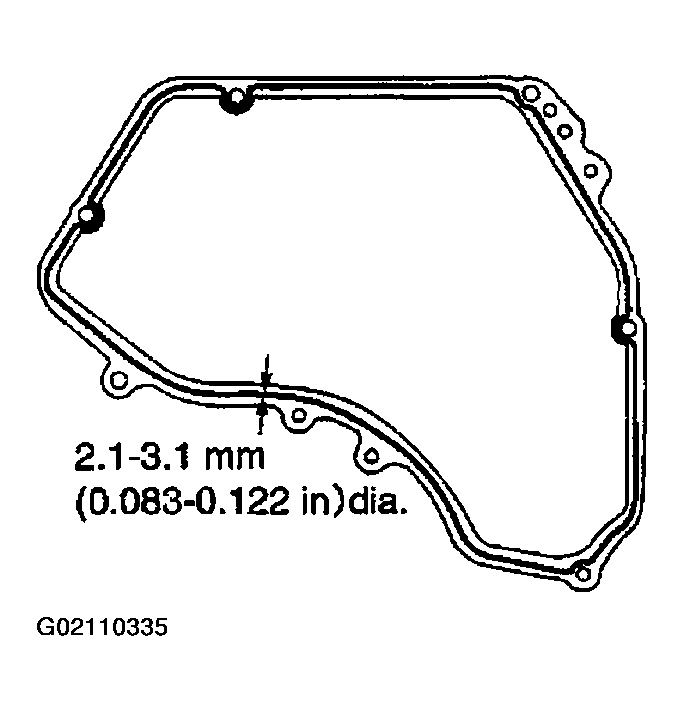

      Fig 9: Applying Sealant To Cover
      G02110335Courtesy of NISSAN MOTOR CO., U.S.A.
    4. Install IVTC cover.
    • Tighten the bolts in the numerical order as shown.
  9. Check and adjust valve clearances. Refer to VALVE CLEARANCE  .
  10. For the following operations, perform steps in the reverse order of removal.

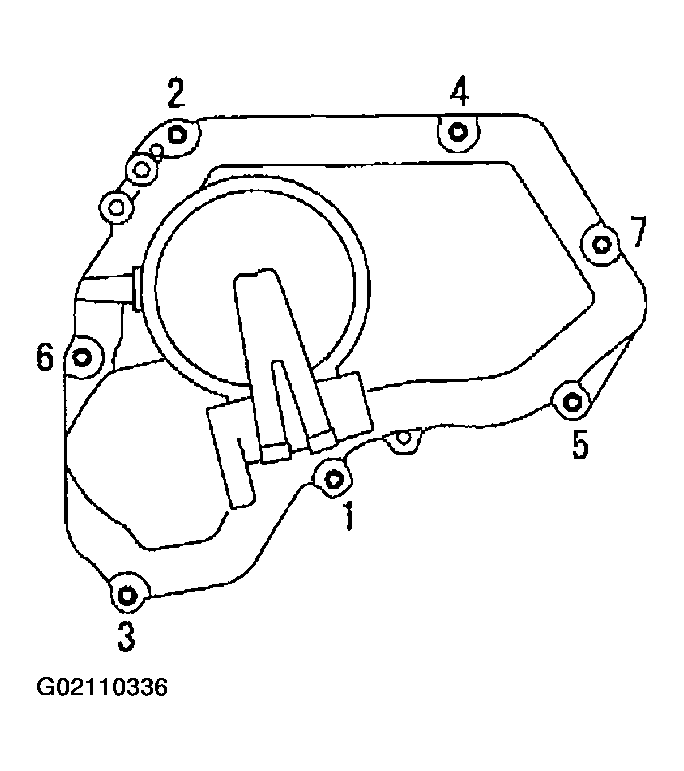

    Fig 10: View Of Intake Valve Timing Control Cover Torque Sequence
    G02110336Courtesy of NISSAN MOTOR CO., U.S.A.
