Valve Lifter Hole Diameter
WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

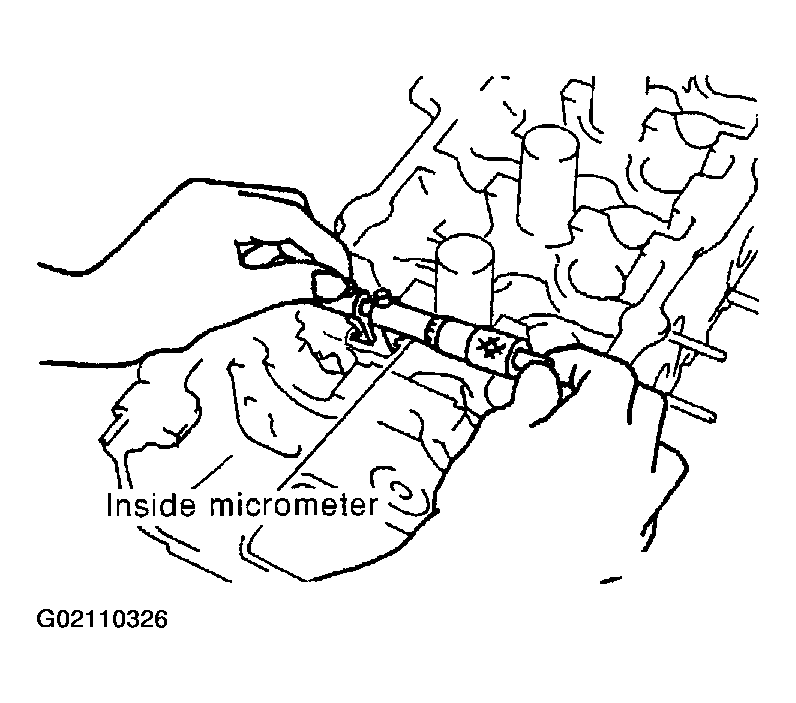

- Using inside micrometer, measure diameter of valve lifter hole of cylinder head.
- Standard :34.000 - 34.021 mm (1.3386 - 1.3394 in)
- If out of the specified range, replace the cylinder head assembly.
Courtesy of NISSAN MOTOR CO., U.S.A.
