Outer Diameter of Camshaft Journal
WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

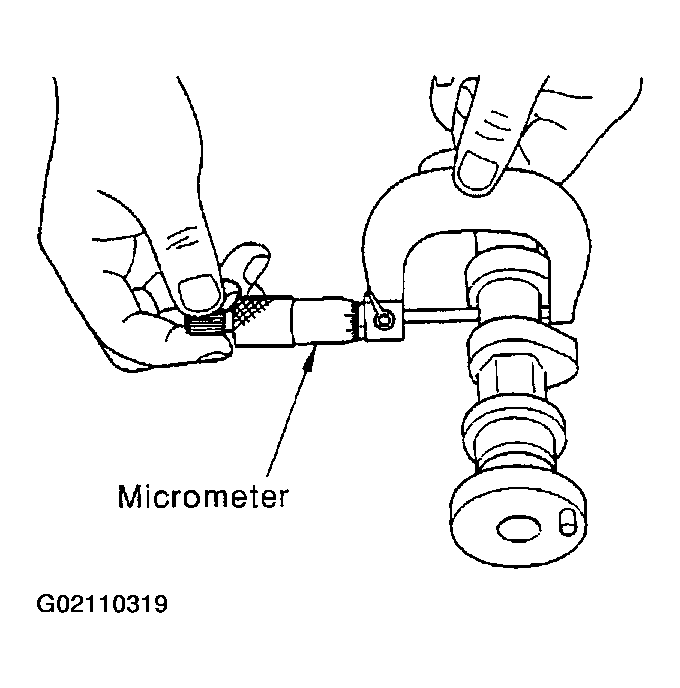

- Measure the outer diameter of the camshaft journal.
- Standard No. 1 outer diameter : 27.935 - 27.955 mm (1.0998 - 1.1006 in)
- Standard No. 2, 3, 4, 5, outer diameter : 23.435 - 23.455 mm (0.9226 - 0.9234 in)
Courtesy of NISSAN MOTOR CO., U.S.A.
