Inner Diameter of Camshaft Bracket

WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

Tighten the camshaft bracket bolts to the specified torque following the tightening pattern as shown. Refer to Step 4 of "INSTALLATION" of "CAMSHAFT" for the specified torque sequence.

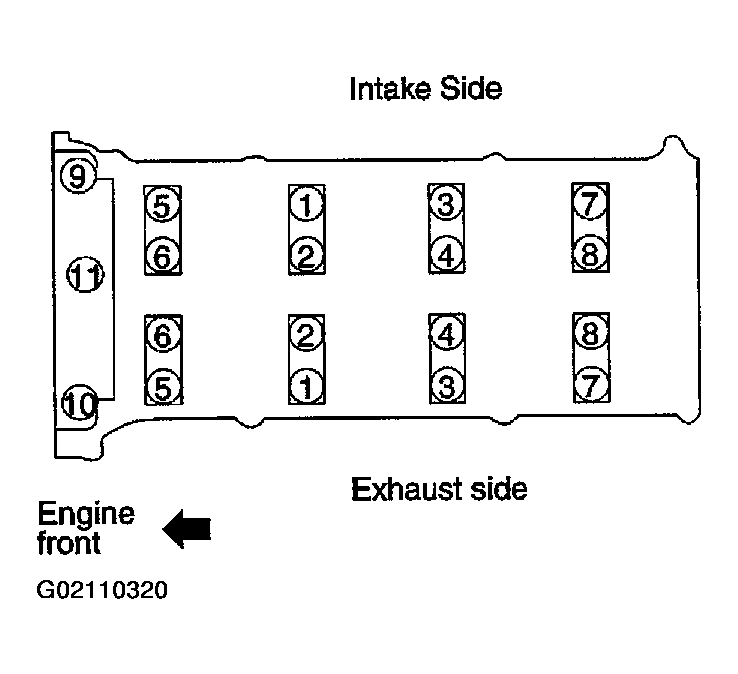

Fig 1: Camshaft Bracket Bolt Tightening Sequence
Courtesy of NISSAN MOTOR CO., U.S.A.
Using inside micrometer, measure inner diameter of camshaft bracket.
1. Standard No. 1 : 28.000 - 28.021 mm (1.1024 - 1.1032 in)
2. Standard No. 2, 3, 4, 5 : 23.500 - 23.521 mm (0.9252 - 0.9260 in)

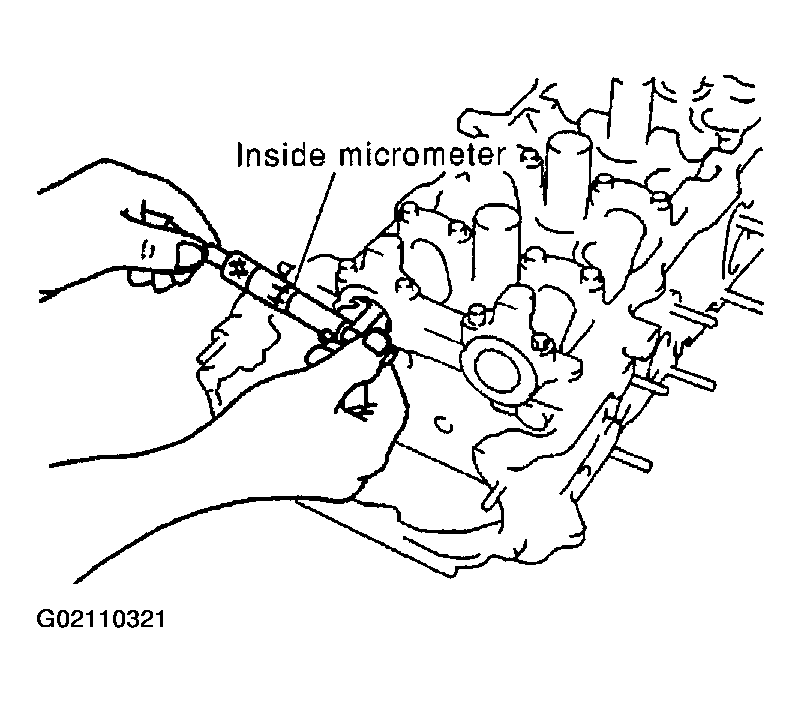

Fig 2: Checking Inner Diameter Of Camshaft Bracket
Courtesy of NISSAN MOTOR CO., U.S.A.
