Camshaft End Play

WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install a dial gauge in the thrust direction on the front end of the camshaft. Measure the end play with the dial gauge while moving the camshaft forward and backward (in direction to axis).
    1. Standard end play :0.115 - 0.188 mm (0.0045 - 0.0074 in)
  2. If out of the specified range, replace with new camshaft and measure again.
  3. If out of the specified range again, replace with new cylinder head assembly.

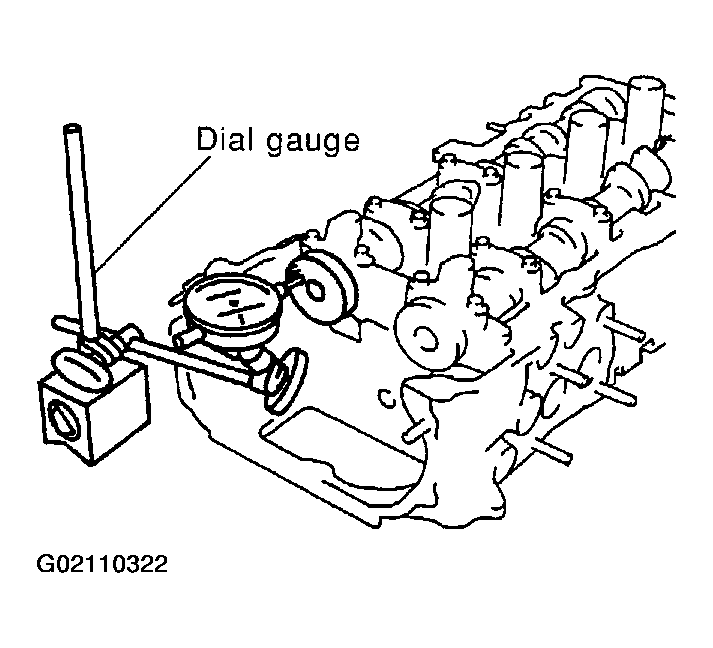

    Fig 1: Checking Camshaft End Play
    G02110322Courtesy of NISSAN MOTOR CO., U.S.A.
