Diagnostic Procedure

WARNING: This page is about a different car, the 2002 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
  1. Ensure fuel cap is original equipment. Attempt to turn fuel cap clockwise. If fuel cap was tightened properly, go to next step. If fuel cap was not tightened properly, clean fuel cap and filler neck with compressed air. Reinstall cap and retest system.
  2. While removing fuel cap, listen for air escaping from fuel tank. If air escaped from fuel tank, go to step  4. If air did not escape from fuel tank, go to next step.
  3. Using a suitable hand vacuum/pressure pump with fuel cap adapter, apply pressure and vacuum to fuel cap. Fuel cap vacuum relief valve should open when pressure reaches 2.22-2.90 psi (15.3-20.0 kPa) and when vacuum reaches -.50 to -.87 psi (-3.4 to -6.0 kPa). If operation is as specified, go to next step. If operation is not as specified, replace fuel cap and retest system.
  4. Check EVAP purge line for leaks. See VACUUM DIAGRAMS article. Reconnect or repair as necessary and retest system. If purge line is okay, clean purge line with compressed air and go to next step.
  5. Check EVAP-CVCV, "O" ring and circuit. See DTC CONFIRMATION TEST  under DTC P0446: EVAP CANISTER VENT CONTROL VALVE. If problem exists, repair as necessary and retest system. If problem does not exist, go to next step.

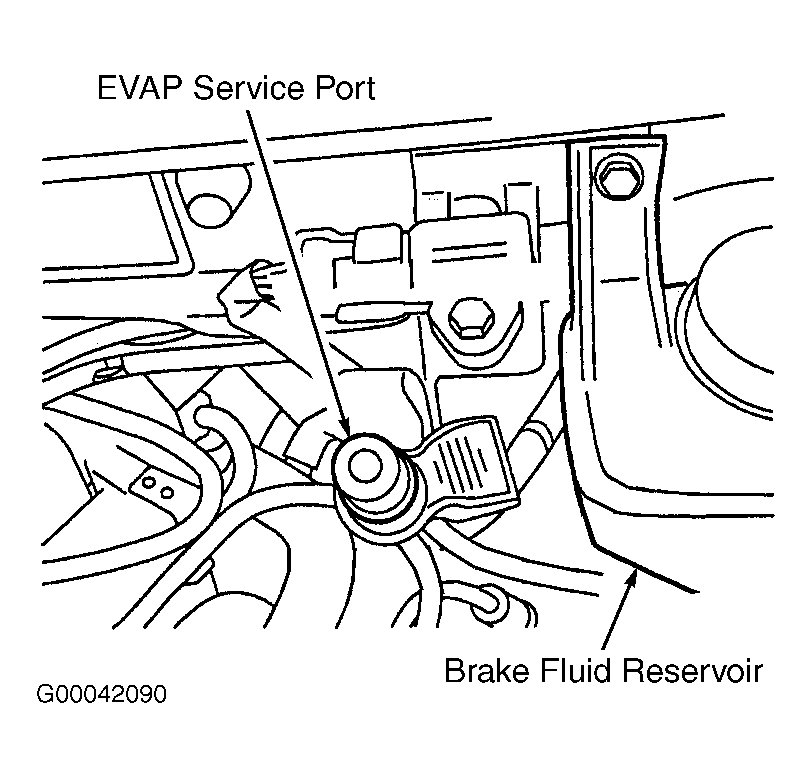

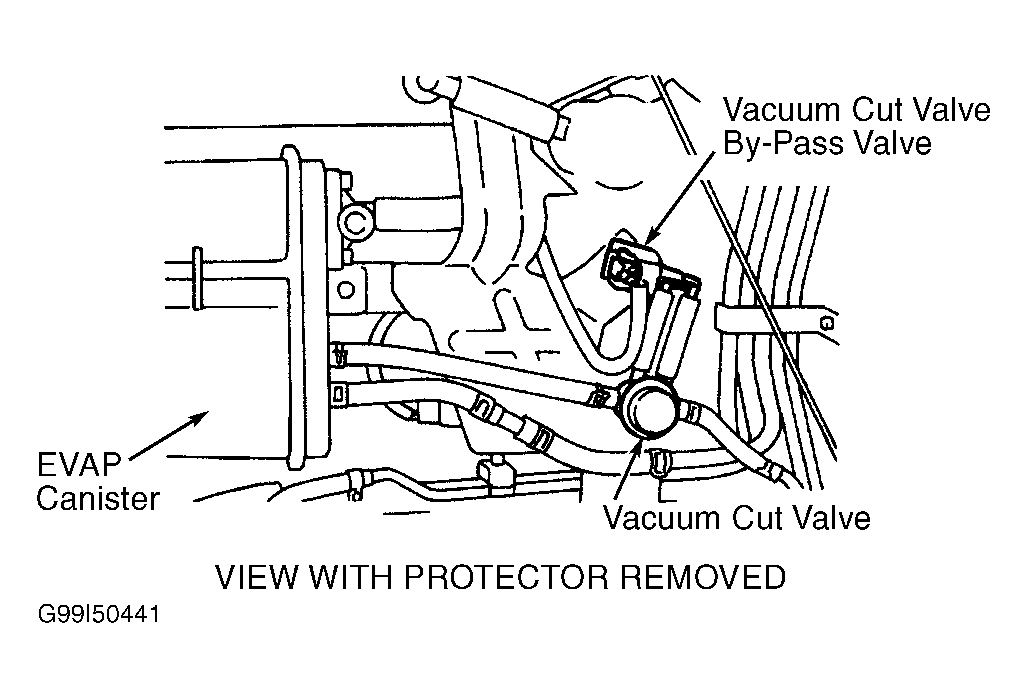

  6. Turn ignition off. Disconnect EVAP-CVCV harness connector. See Figure. Disconnect vacuum cut valve by-pass valve harness connector. See Figure. Connect a pressure pump to EVAP service port. See Figure. Using fused jumper wires, apply battery voltage between EVAP-CVCV terminals. EVAP-CVCV should close. Using fused jumper wires, apply battery voltage between vacuum cut valve by-pass valve terminals. Vacuum cut valve by-pass valve should open. Apply .2-.4 psi (1.3-2.7 kPa) of pressure to EVAP system. Check EVAP system for leaks. See VACUUM DIAGRAMS article. If any leaks are found, repair as necessary and retest system. If no leaks are found, go to next step.
  7. Install components and reconnect all harness connectors. Start engine and warm to normal operating temperature. Turn ignition off. Disconnect EVAP-CPVCV vacuum hose at EVAP service port. Start engine and let it idle for at least 80 seconds. Increase engine speed to 2000 RPM while checking for vacuum at disconnected vacuum hose. If vacuum exists, go to step  9. If vacuum does not exist, go to next step.
  8. Turn ignition off. Check for disconnected or damaged vacuum hoses between EVAP service port and EVAP-CPVCV, and between EVAP-CPVCV and intake manifold. See VACUUM DIAGRAMS article. If problem exists, repair as necessary and retest system. If problem does not exist, go to next step.
  9. Disconnect vacuum hoses from EVAP-CPVCV. See Figure. Disconnect EVAP-CPVCV harness connector. Apply air pressure to port "A" at EVAP-CPVCV. See Figure. Air should not flow from port "B". Using fused jumper wires, apply battery voltage between EVAP-CPVCV terminals. Air should now flow from port "B". If EVAP-CPVCV does not operate as specified or operation takes more than one second, replace EVAP-CPVCV and retest system. If EVAP-CPVCV operates as specified, go to next step.
    10. CAUTION: DO NOT use ECM ground terminals when measuring voltage.
  10. Remove AP sensor with its harness connector connected. See Figure. Turn ignition on. Measure voltage between ground and AP sensor signal circuit at ECM terminal No. 45 (Pink wire) by backprobing. Voltage should be 3.2-4.8 volts. Using a hand vacuum pump, apply 7.87 in. Hg of vacuum to AP sensor. Voltage should be 1.0-1.4 volts less than voltage measured with no vacuum applied. If voltage is as specified, go to next step. If voltage is not as specified, replace AP sensor and retest system.
  11. Remove fuel pump assembly from fuel tank. Measure resistance between fuel pump assembly connector terminals No. 1 and 4 (component side). See Figure. Resistance should be 2300-2700 ohms at 68°F (20°C) and 790-900 ohms at 122°F (50°C). Resistance should decrease as temperature increases. See Figure. If resistance is not as specified, replace FTT sensor and retest system. If resistance is as specified, go to next step.
    CAUTION: Do not apply more than 5.91 in. Hg of vacuum to EVAP-CSPS. Replace EVAP-CSPS if it has been dropped from a height of more than 20" (.5 m) onto a hard surface such as concrete.
    12. CAUTION: DO NOT use ECM ground terminals when measuring voltage.
  12. Remove EVAP-CSPS with its harness connector connected. See Figure. Turn ignition on. Using a vacuum pump, apply 2.76 in. Hg of vacuum to EVAP-CSPS vacuum port. Measure voltage between ground and EVAP-CSPS signal circuit at ECM terminal No. 62 (Red wire) by backprobing. Voltage should be .4-.6 volt. Disconnect vacuum pump. Voltage should be 3.0-3.6 volts. If voltage is as specified, go to next step. If voltage is not as specified, replace EVAP-CSPS and retest system.
  13. No problem is indicated at this time. Problem may be intermittent. See INTERMITTENTS in TROUBLE SHOOTING - NO CODES article.
