Removal And Installation: Qr25DE: Removal

WARNING: This page is about a different car, the 2002 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative and positive battery cables.
  2. Remove the engine undercover (M/T) or the air duct, fresh air intake hose, and air cleaner lid (A/T).
  3. Disconnect the starter harness connectors.
  4. Remove the two starter mounting bolts.

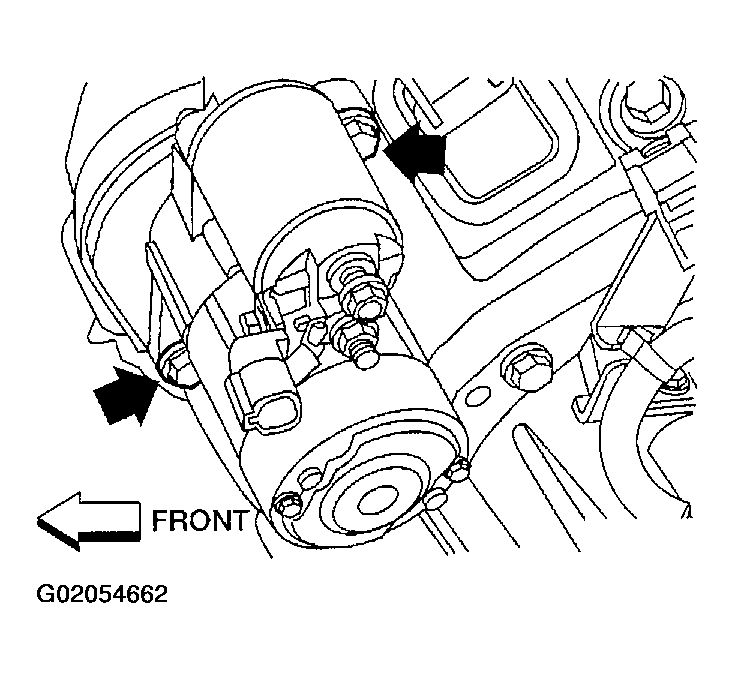

    5. Fig 1: Removing Starter (QR25DE)
    G02054662Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Remove the starter.
