Removal And Installation: QG18DE: Removal

WARNING: This page is about a different car, the 2002 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery terminal.
  2. Remove the upper starter mounting bolt.

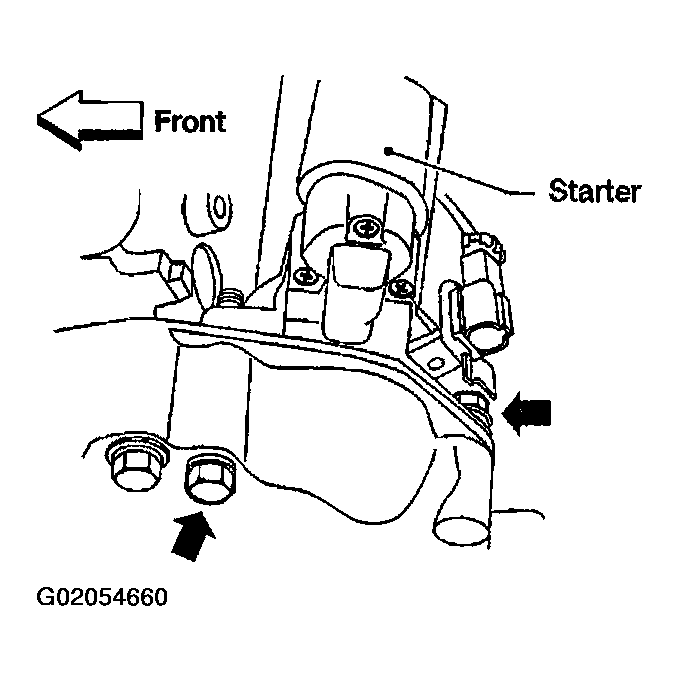

    3. Fig 1: Removing Starter (QG18DE)
    G02054660Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Remove the harness protector from the starter engine room harness.
  4. Disconnect the starter harness connectors.
  5. Remove the lower starter mounting bolt.
  6. Remove the starter.
