Removal And Installation: QG18DE: Installation

WARNING: This page is about a different car, the 2002 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

To install, reverse the removal procedure.

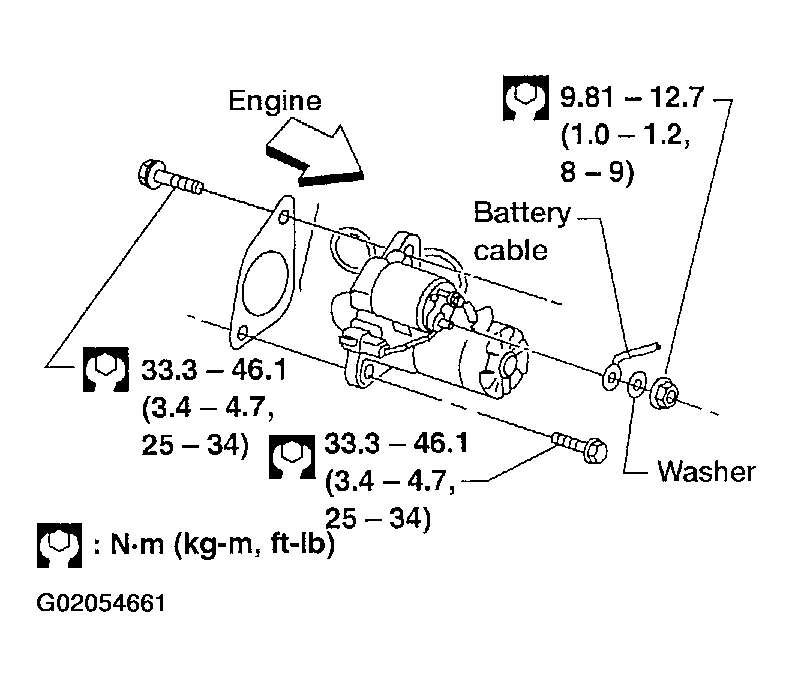

Fig 1: Starter Motor (QG18DE) With Torque Specifications
G02054661Courtesy of NISSAN MOTOR CO., U.S.A.
