Diagnostic Procedure (A/T)
WARNING: This page is about a different car, the 2002 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

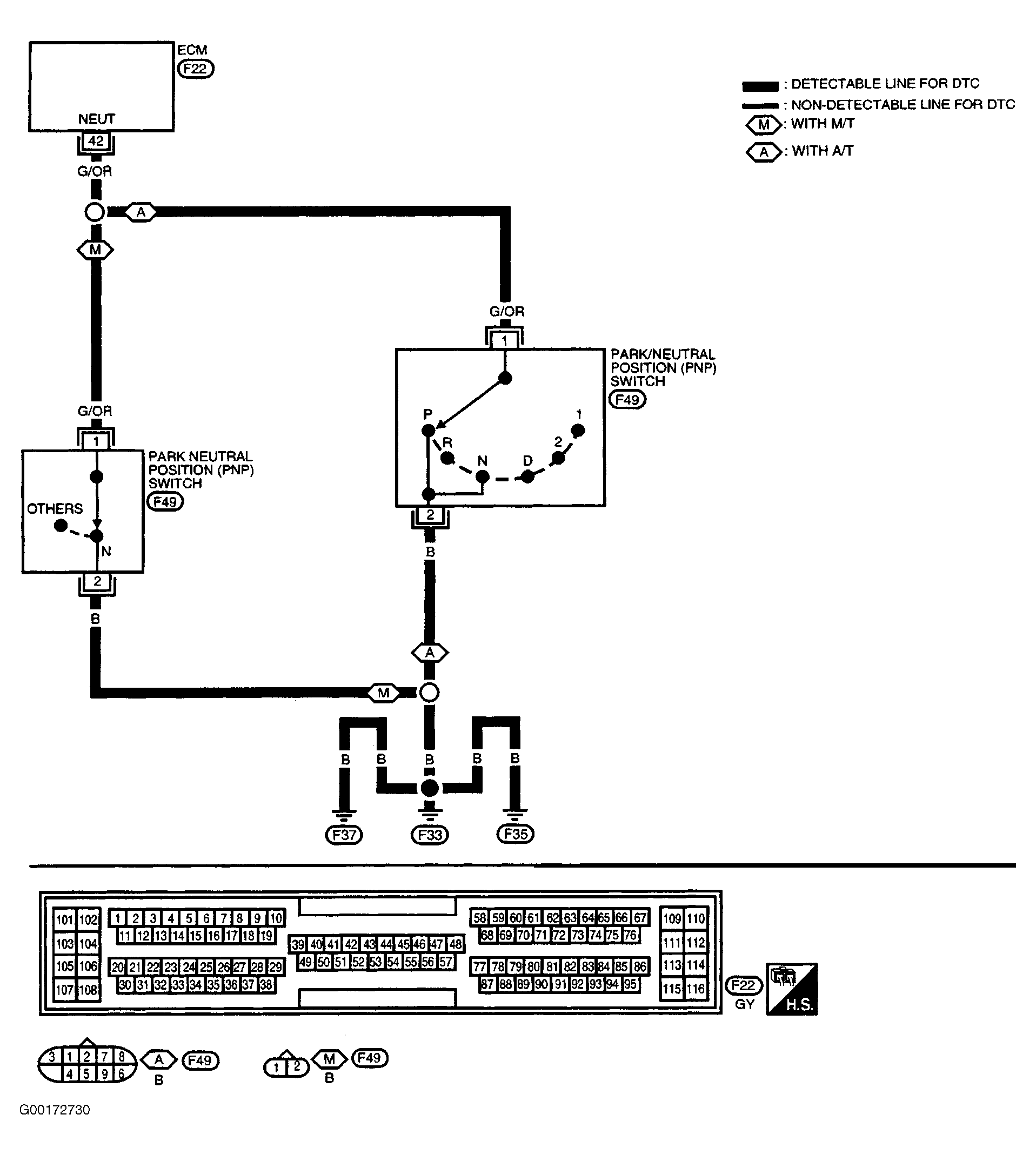

For circuit wiring diagram, see Fig 1
. For connector identification and locations, see CONNECTOR IDENTIFICATION
.
- Check Ground Circuit

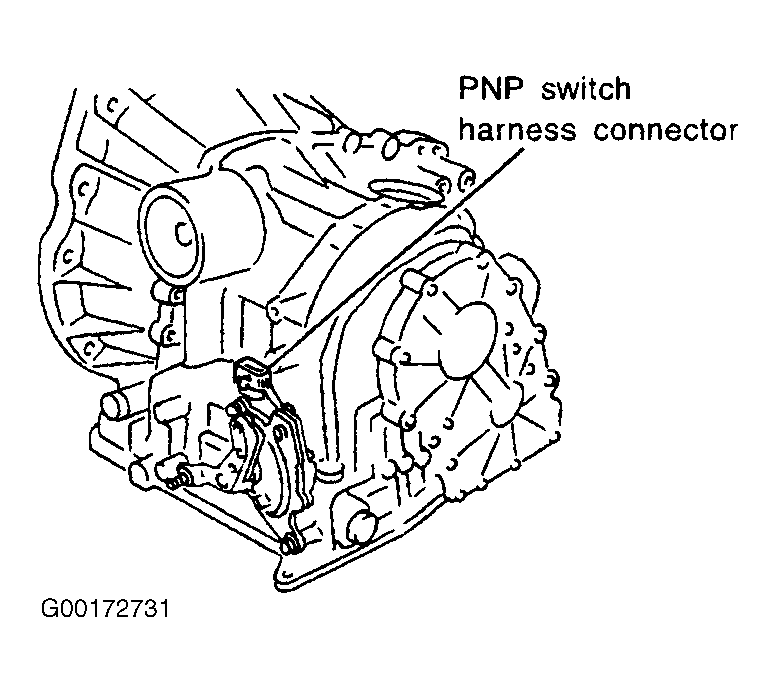

Turn ignition off. Disconnect PNP switch harness connector. See Fig 2 . Check continuity between ground and PNP switch harness connector terminal No. 2. See Fig 1 . Continuity should exist. Also, check harness for short to power. If problem is found, repair as necessary. Perform DTC CONFIRMATION TEST to verify repair. If problem is not found, go to next step. - Check Input Signal Circuit
Turn ignition off. Disconnect ECM harness connector. See Figure . Check continuity between PNP switch harness connector terminal No. 1 and ECM harness connector terminal No. 42. See Fig 1 . Continuity should exist. Also, check harness for short to ground and short to power. If problem is found, repair as necessary. Perform DTC CONFIRMATION TEST to verify repair. If problem is not found, go to next step. - Check PNP Switch
Perform DIAGNOSTIC PROCEDURE under DTC P0705: PARK/NEUTRAL POSITION SWITCH under DIAGNOSTIC TESTS in appropriate DIAGNOSIS article in AUTOMATIC TRANSMISSIONS. If problem is found, repair as necessary. Perform DTC CONFIRMATION TEST to verify repair. If problem is not found, go to next step. - Check For Intermittent
Check for intermittent condition. See INTERMITTENTS in TROUBLE SHOOTING - NO CODES article. Perform DTC CONFIRMATION TEST to verify repair.
