Possible Causes

WARNING: This page is about a different car, the 2002 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

For possible causes, see Fig 1 .

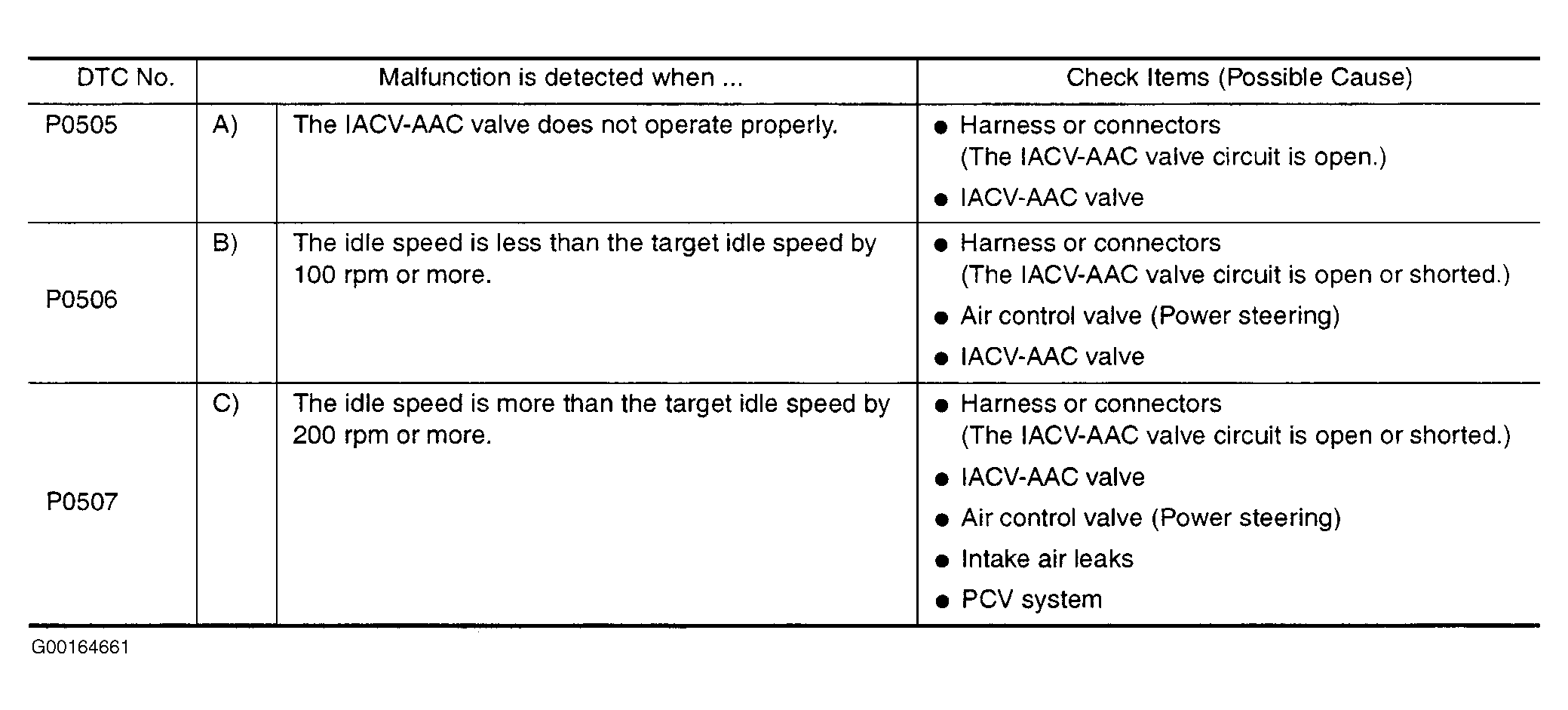

Fig 1: Possible Causes For DTCs P0505, P0506 & P0507
G00164661Courtesy of NISSAN MOTOR CO., U.S.A.
NOTE: Perform the following DTC confirmation tests in order. If a DTC confirmation test has been previously performed, always turn ignition off and wait at least 10 seconds before performing next DTC confirmation test.
