Diagnostic Procedure

WARNING: This page is about a different car, the 2002 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

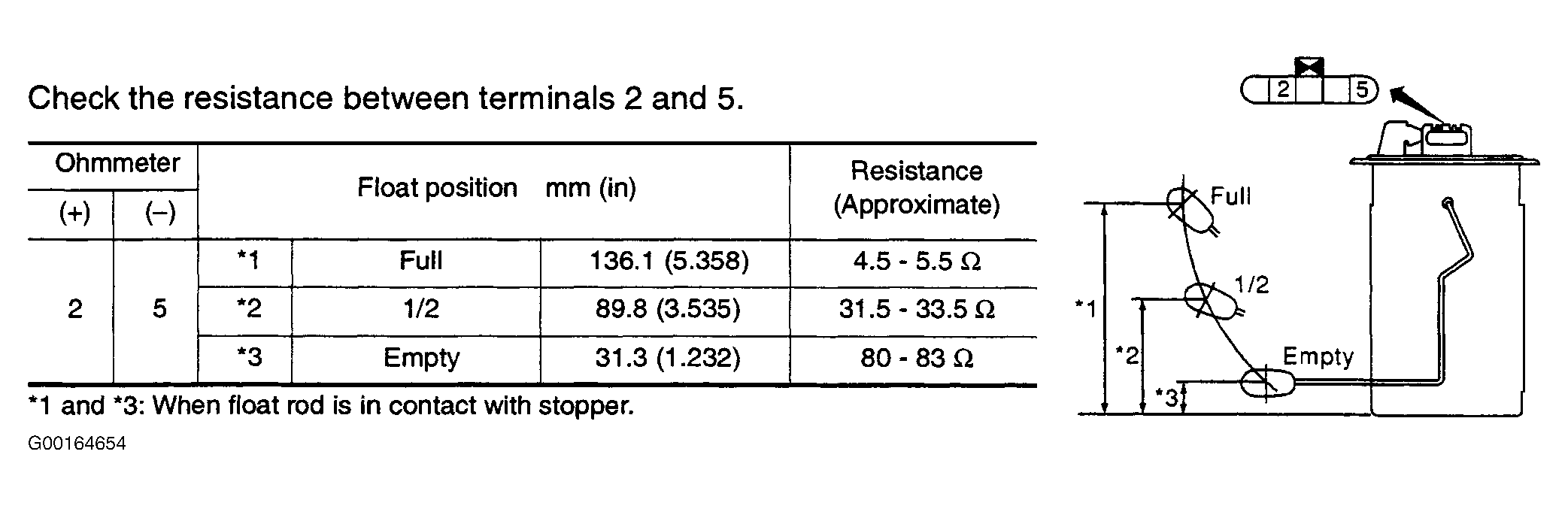

Check fuel level sensor as shown in illustration. See Figure . If fuel level sensor is okay, test is complete. If fuel level sensor is not okay, replace fuel level sensor. Perform DTC CONFIRMATION TEST  to verify repair.
