DTC P0217 Or DTC P1217: Description
WARNING: This page is about a different car, the 2002 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

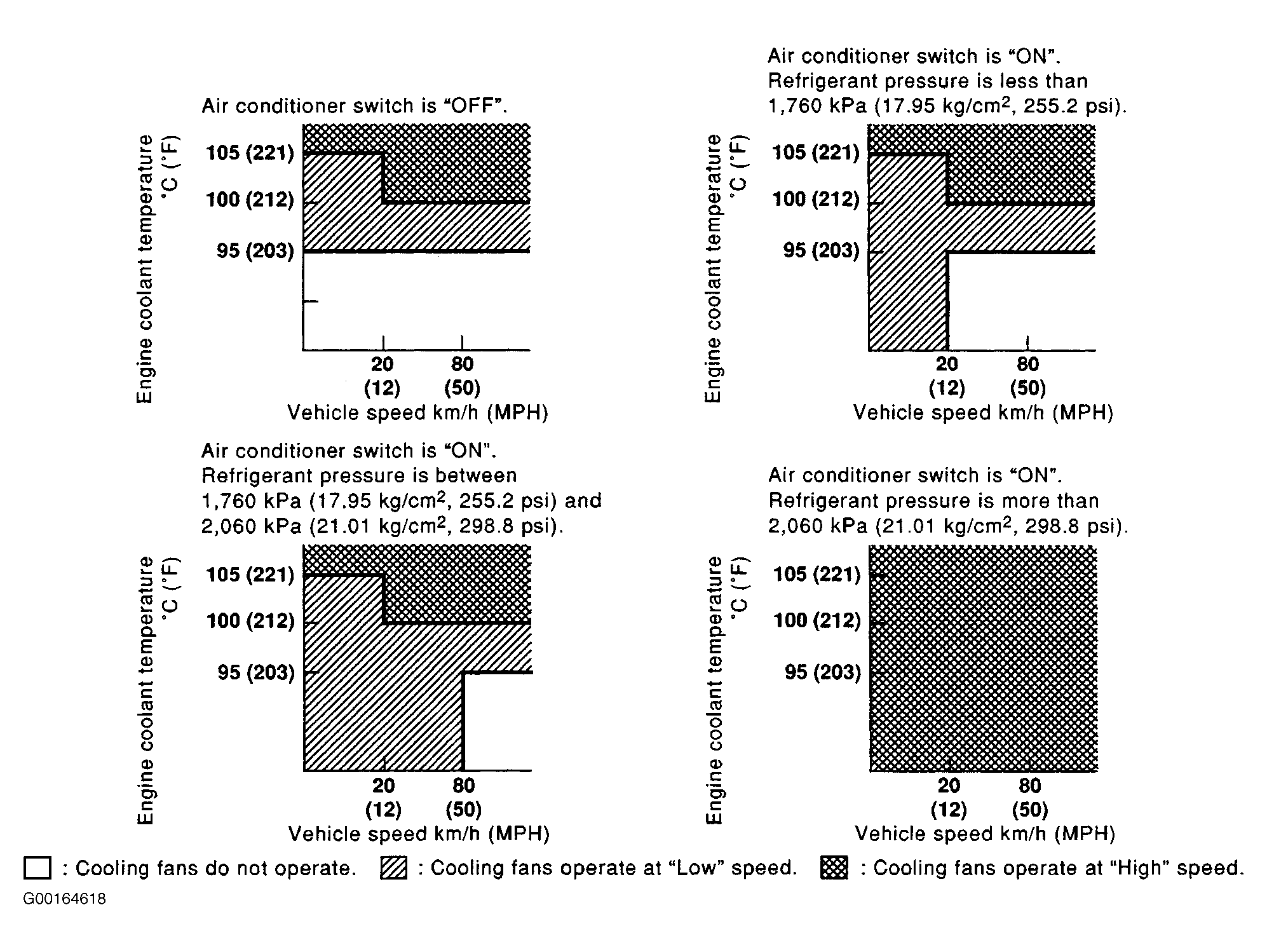

The ECM controls the cooling fan corresponding to the vehicle speed, engine coolant temperature, refrigerant pressure and A/C ON signal. See Fig 1

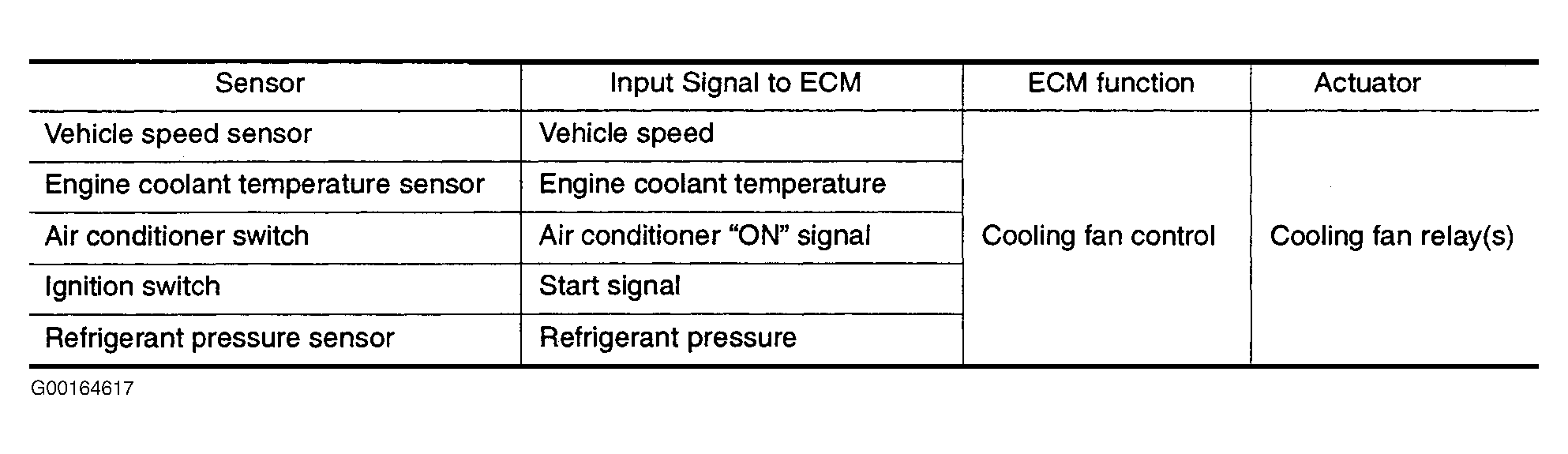

. The control system has 3-step control (high/low/off). See Fig 2
.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
