Fail-Safe Mode

WARNING: This page is about a different car, the 2002 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

For fail-safe mode operating conditions, see Fig 1 .

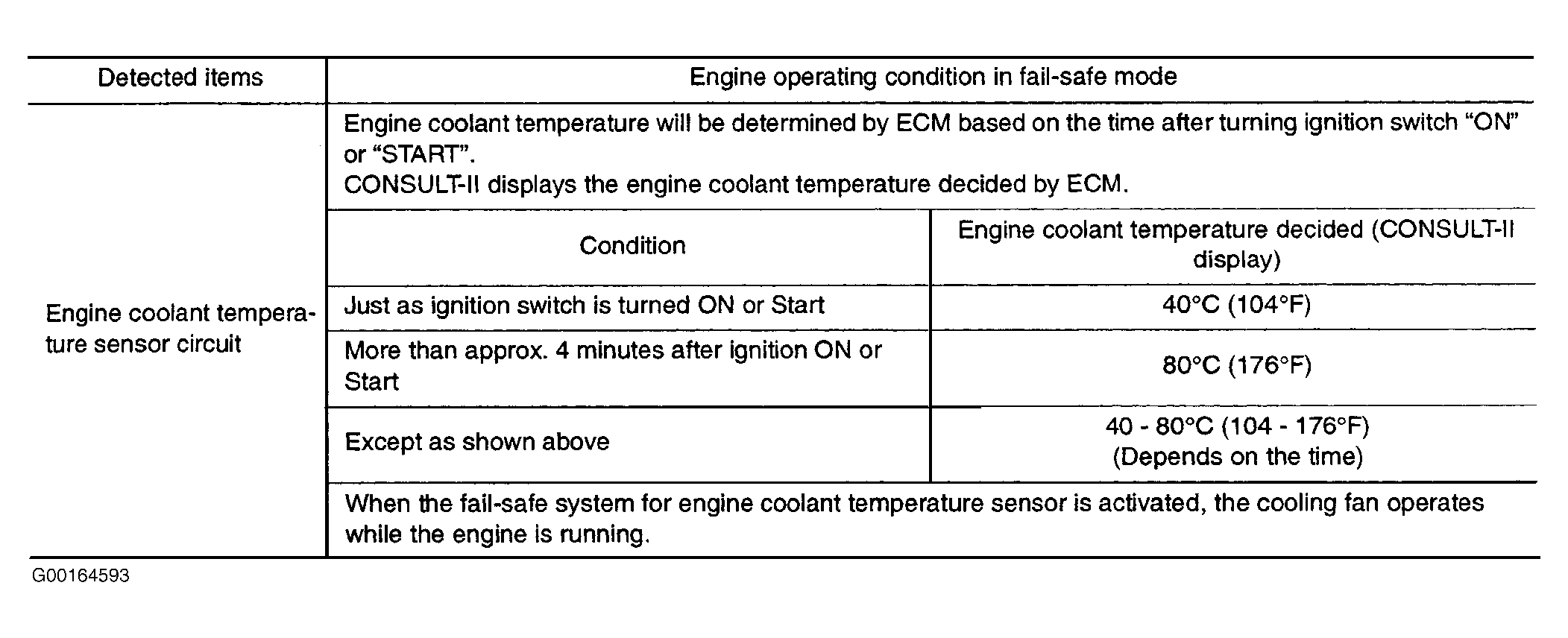

Fig 1: Fail Safe Mode Operating Conditions For ECT Sensor
G00164593Courtesy of NISSAN MOTOR CO., U.S.A.
