DTC P0011: Intake Valve Timing Control Performance: Operation

WARNING: This page is about a different car, the 2002 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

For system operation, see Fig 1 .

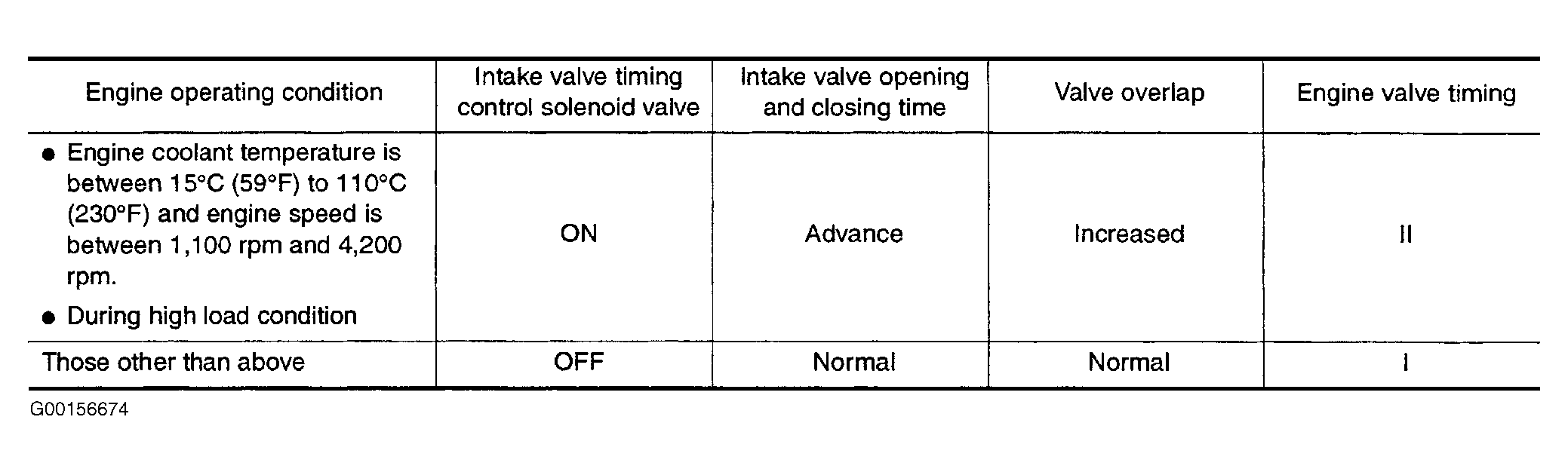

Fig 1: Intake Valve Timing Control System Operation
G00156674Courtesy of NISSAN MOTOR CO., U.S.A.
