Main Harness

WARNING: This page is about a different car, the 2002 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

For harness routing and connector locations, see Fig 1 . For connector identification, see Fig 2 .

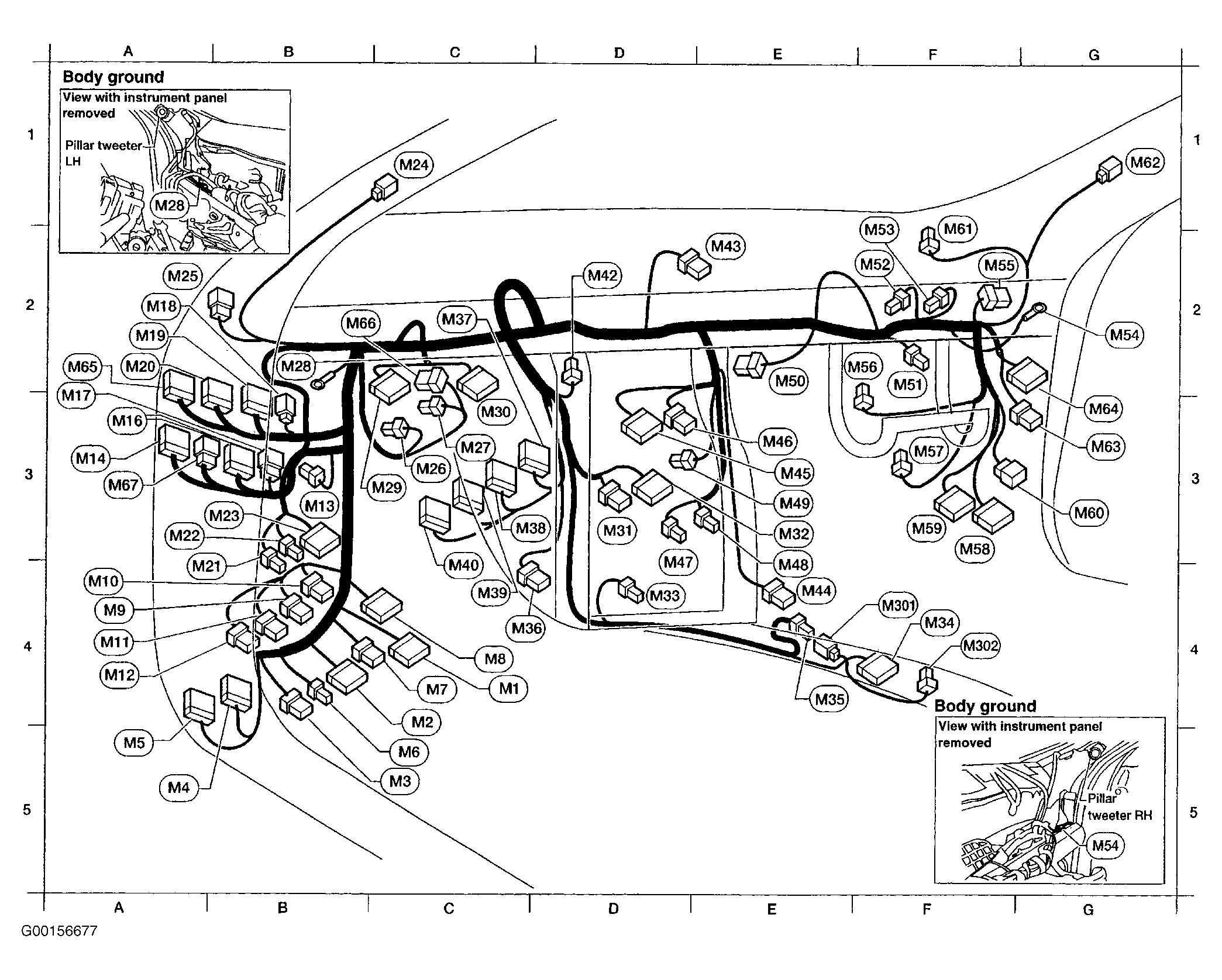

Fig 1: Main Harness Routing
G00156677Courtesy of NISSAN MOTOR CO., U.S.A.

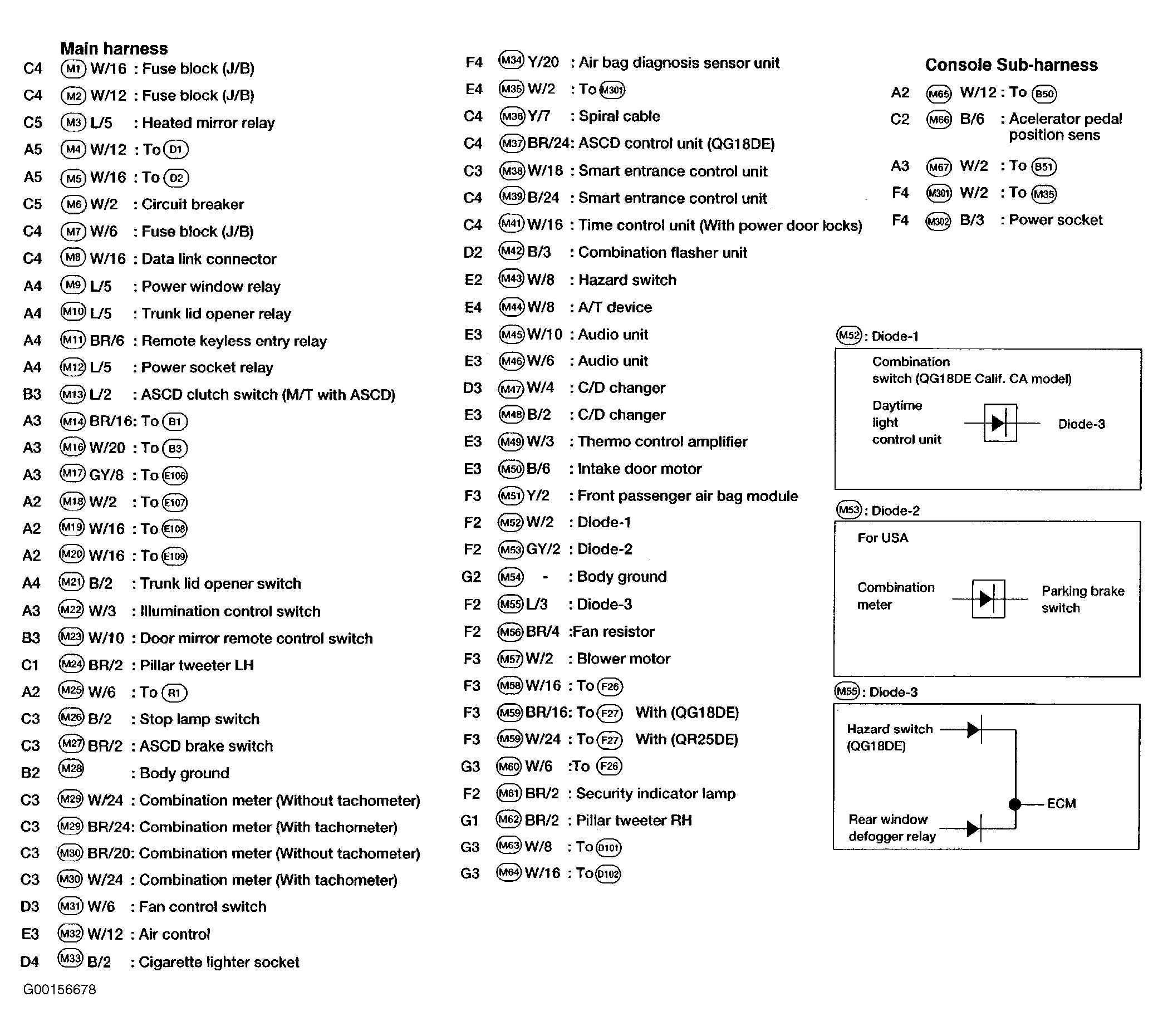

Fig 2: Main Harness Connector Identification
G00156678Courtesy of NISSAN MOTOR CO., U.S.A.
