Joint Connectors

WARNING: This page is about a different car, the 2002 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

For joint connector continuity, see Fig 1 .

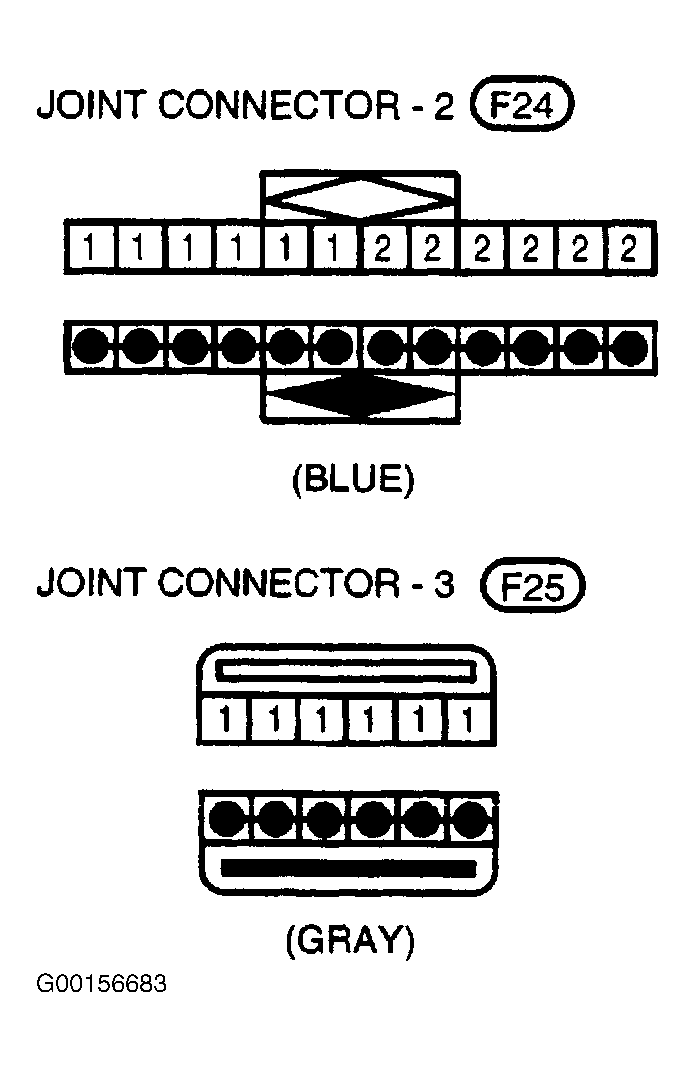

Fig 1: Identifying Joint Connector Continuity
G00156683Courtesy of NISSAN MOTOR CO., U.S.A.
