Fuse Block

WARNING: This page is about a different car, the 2002 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

Fuse block is located under left side of instrument panel. To identify connectors and fuses, see Fig 1 .

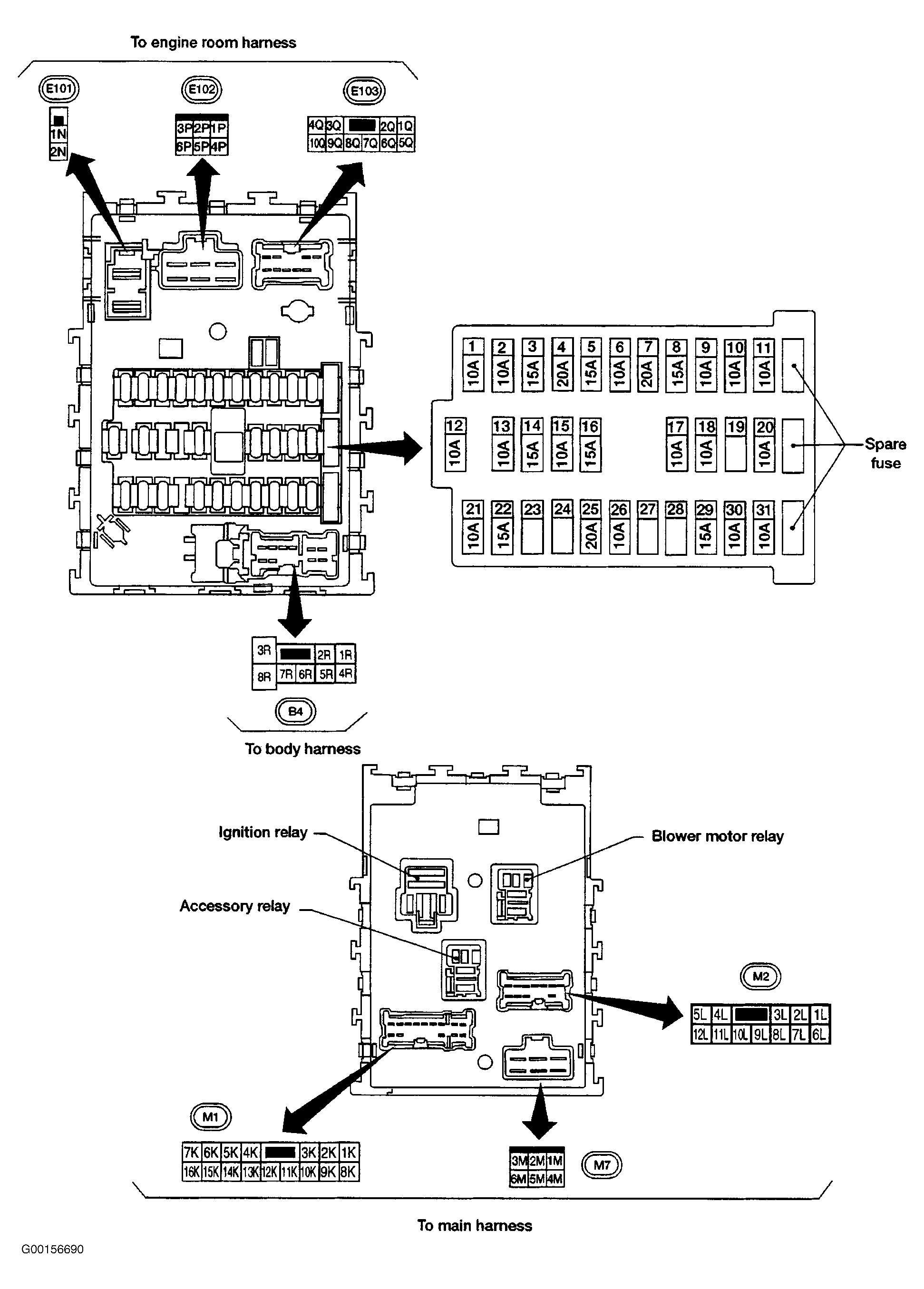

Fig 1: Identifying Fuse Block Connectors & Fuses
G00156690Courtesy of NISSAN MOTOR CO., U.S.A.
