WARNING: This page is about a different car, the 2002 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.
For harness routing and connector locations, see Fig 1
. For connector identification, see Fig 2
.

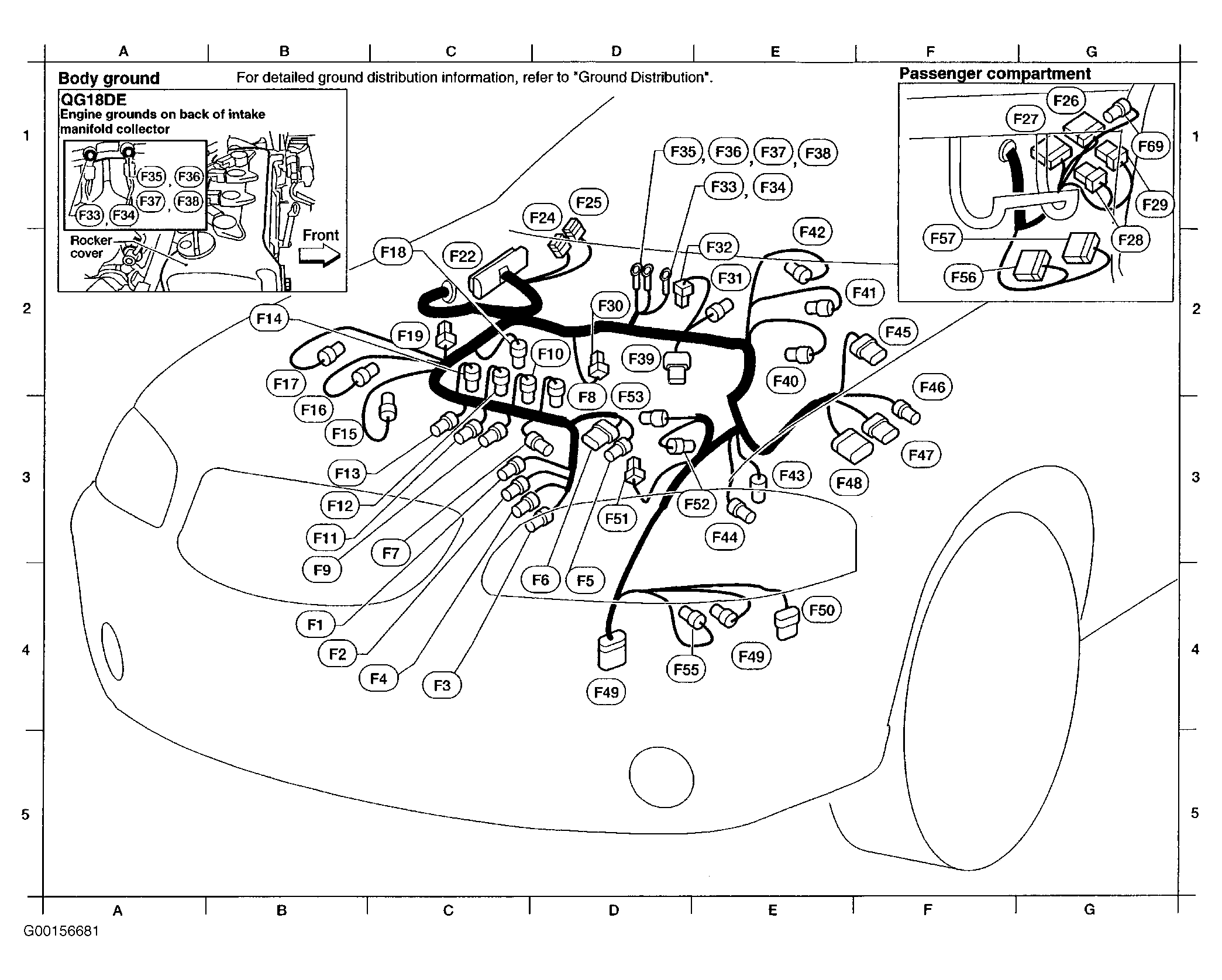

Fig 1: Engine Control Harness Routing (1.8L Except California CA)
Courtesy of NISSAN MOTOR CO., U.S.A.

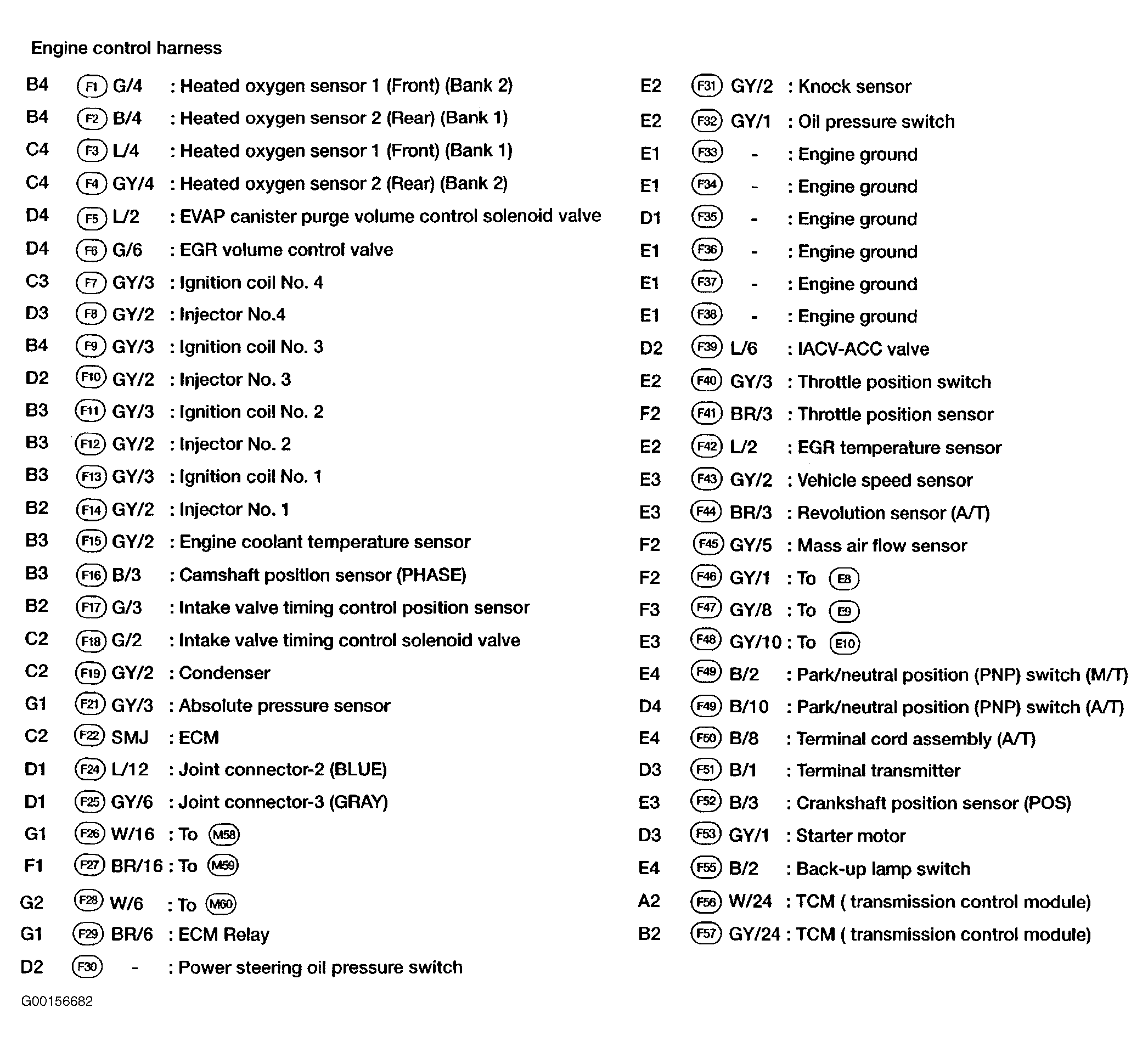

Fig 2: Engine Control Harness Connector Identification (1.8L Except California CA)
