Removal & Installation (Rear Console)

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

Before proceeding, see AIR BAG SAFETY PRECAUTIONS . Remove rear seat cushions and disconnect wire harness connectors. Remove rear seat backs and disconnect wire harness connectors.
Remove screws from pass through assembly. See Fig 1 . Remove pass through assembly. Remove screws from left and right lower side covers and remove side covers. Remove screws from rear console.
Remove rear console. To install, reverse removal procedure.

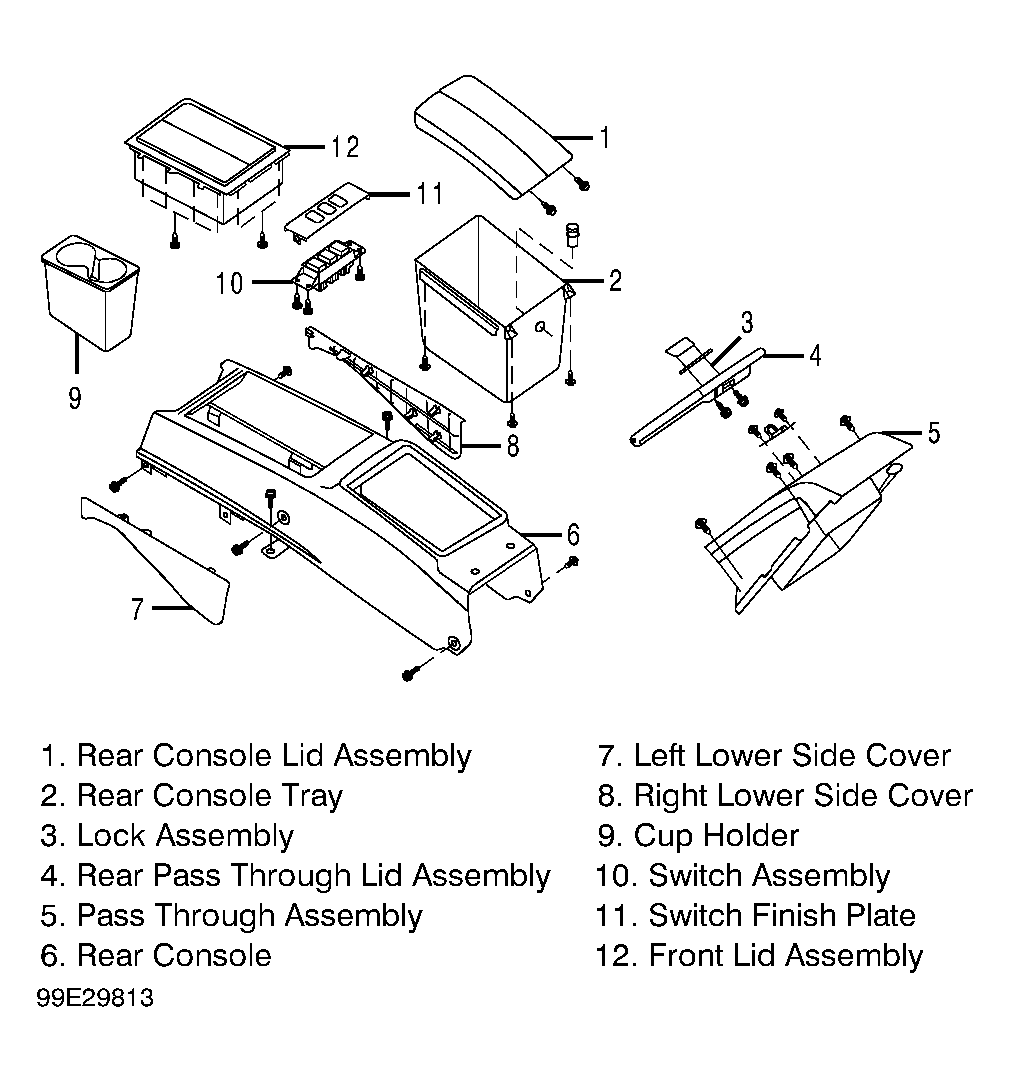

Fig 1: Identifying Rear Console Components

Courtesy of NISSAN MOTOR CO., U.S.A.
