Spiral Cable

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

Ensure front wheels are facing straight ahead. Turn spiral cable clockwise until resistance is felt. DO NOT over tighten. Turn spiral cable counterclockwise about 2.5 turns and align adjustment mark and centering mark. Locating pin should be at apex of spiral cable. See Fig 1 .

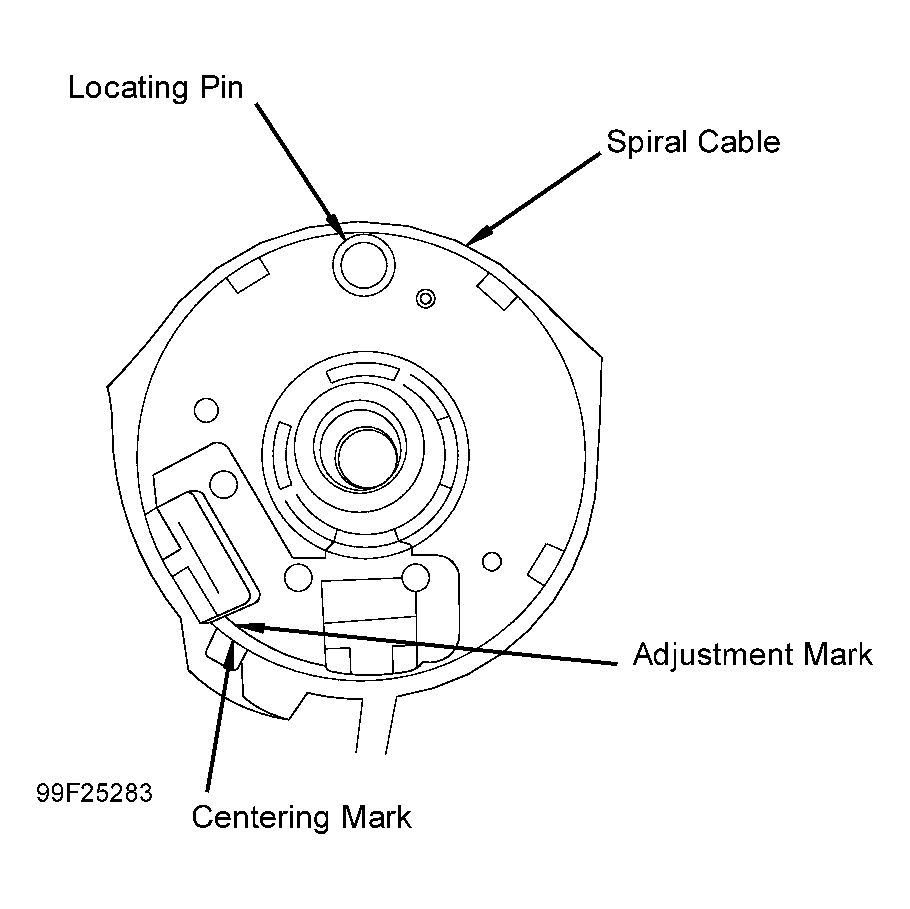

Fig 1: Centering Spiral Cable
G99F25283Courtesy of NISSAN MOTOR CO., U.S.A.
