Checking Steering Wheel Turning Force

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

Park vehicle on a level, dry surface and set parking brake.
Start engine.
Bring power steering fluid up to adequate operating temperature. Make sure the fluid temperature is approximately 60° to 80°C (140° to 176°F).
Tires need to be inflated to normal pressure.
Check steering wheel turning force using Tool when steering wheel has been turned 360° from the neutral position.

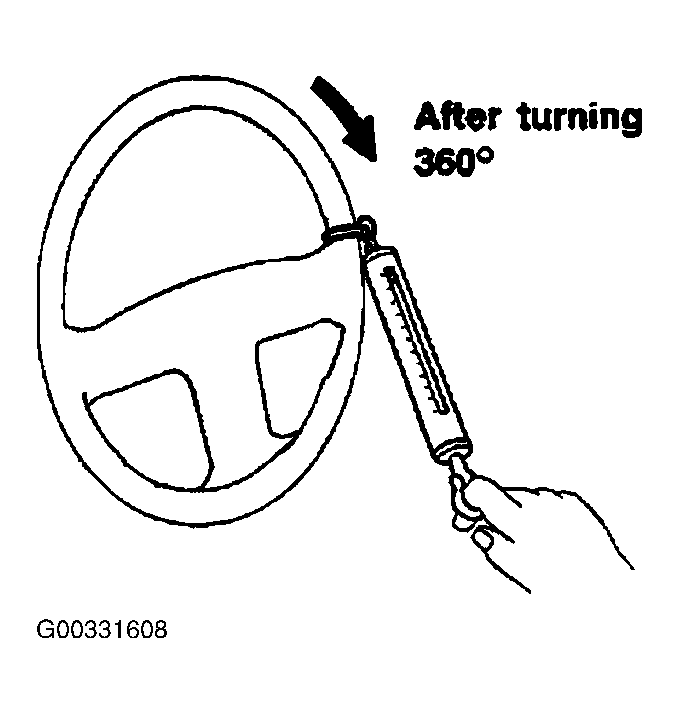

Fig 1: Checking Steering Wheel Turning Force
Courtesy of NISSAN MOTOR CO., U.S.A.
1. Tool number: J-44372
2. Steering wheel turning : 39 N (4 kg-f, 9 lb-f) or less force
If steering wheel turning force is out of specification, check rack sliding force. Refer to "CHECKING RACK SLIDING FORCE ".
If rack sliding force is not within specifications, adjust rack sliding force. Refer to "ADJUSTMENT FOR RACK SLIDING FORCE ".
If rack sliding force is OK, inspect steering column. Refer to "INSPECTION ".
