Checking Steering Wheel Play

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

With wheels in a straight-ahead position, check steering wheel play.
1. Steering wheel play : 35 mm (1.38 in) or less
If it is not within specification, check the following for looseness or worn components.

Steering gear assembly

Steering column

Front suspension and axle

Check steering system for looseness while moving the steering wheel in all directions.

Axial end play : 0 mm (0 in)

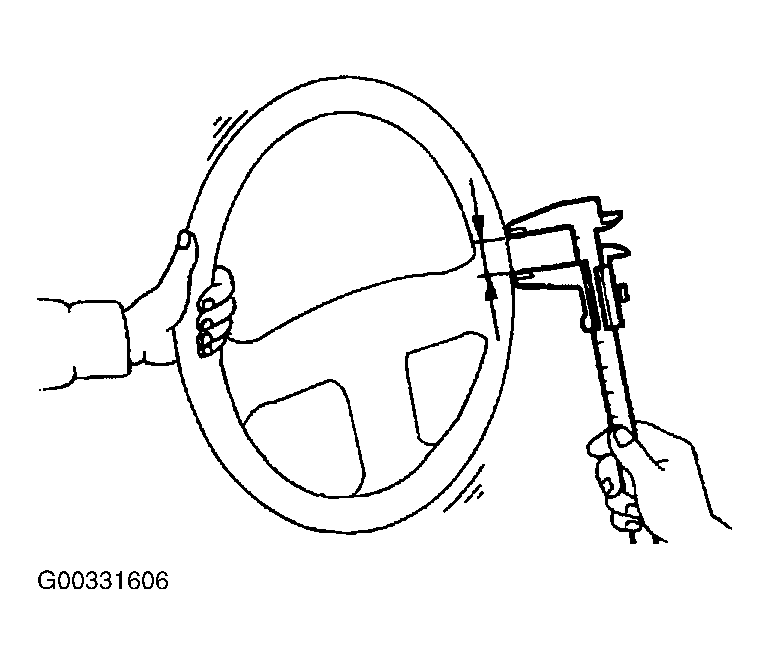

Fig 1: Checking Steering Wheel Play

Courtesy of NISSAN MOTOR CO., U.S.A.
