Steering Gear And Linkage (SDS)

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

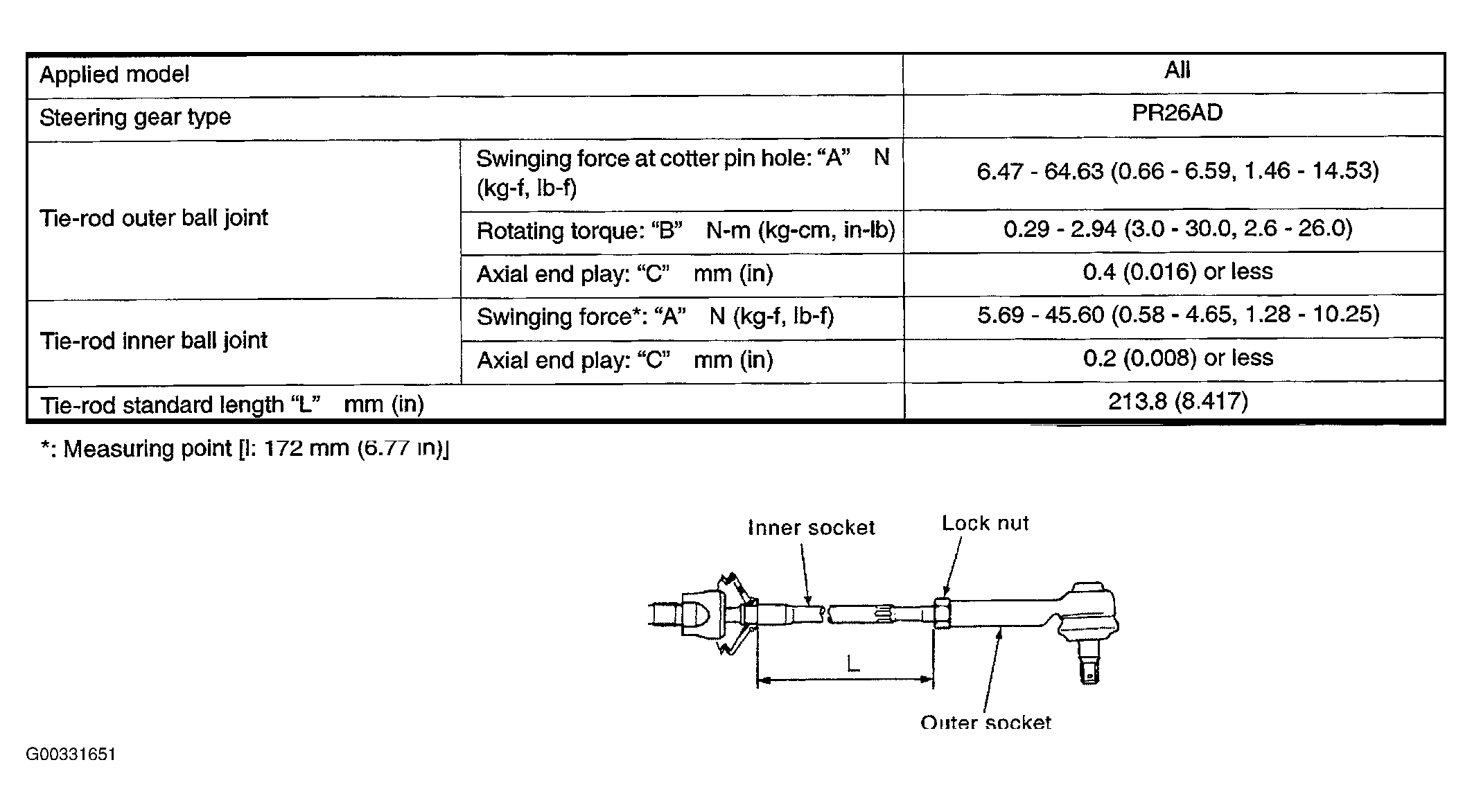

Fig 1: Steering Gear and Linkage (SDS - 1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

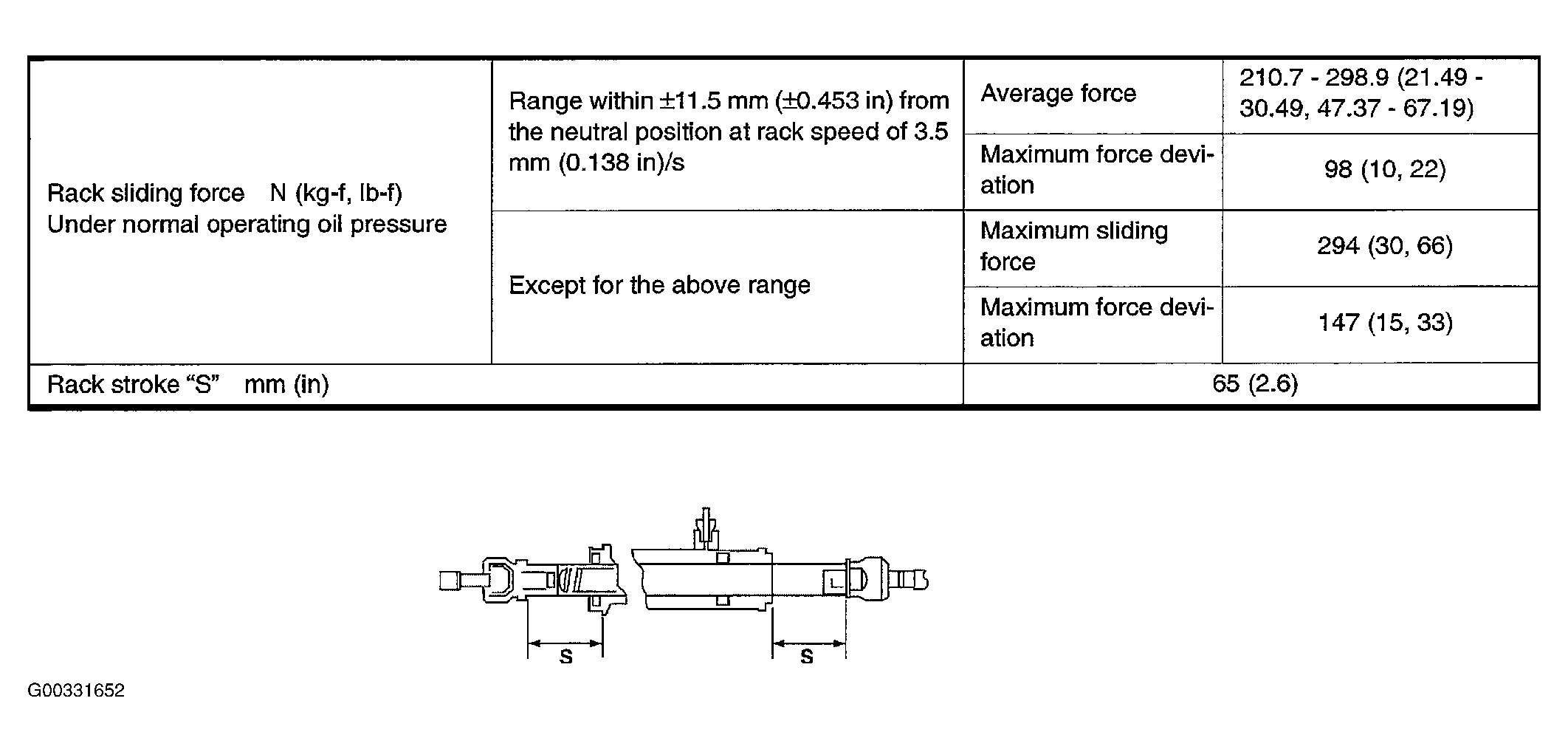

Fig 2: Steering Gear and Linkage (SDS - 2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.
