Disassembly and Assembly

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

Remove screws from display unit and remove display unit from brackets.
CAUTION: Handle the display unit carefully to avoid damage.

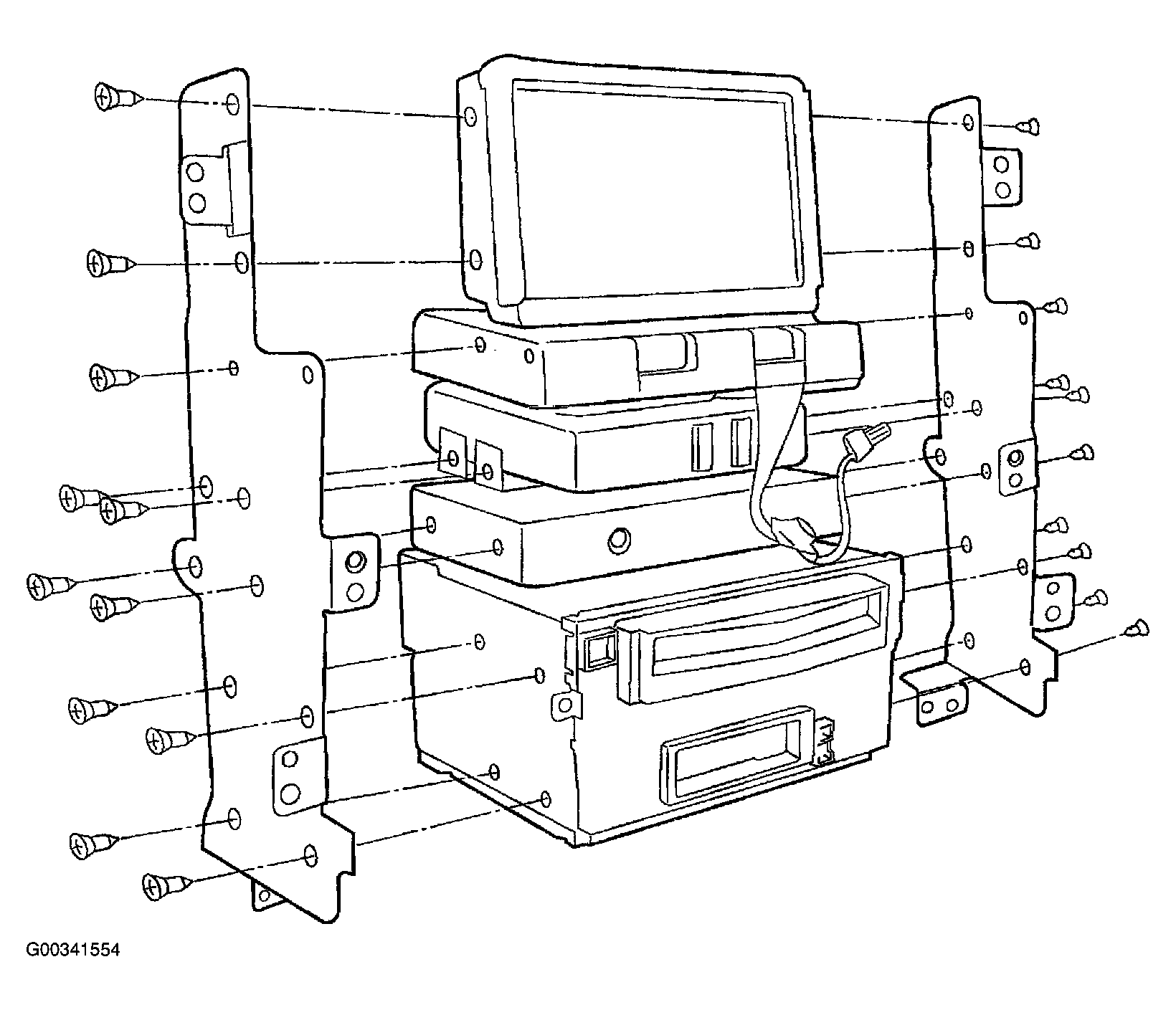

Fig 1: Disassembly and Assembly Of Center Stack
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove screws and remove unified meter and A/C amp.
Remove screws and remove automatic drive positioner control unit from brackets.
Remove screws and remove the display control unit from brackets.
NOTE: The display control unit is supplied only on vehicles with the navigation system.
Remove screws and remove audio unit from brackets.
CAUTION:
- When carrying audio unit body, do not touch internal mechanism access from cassette tape slot.
- Be careful not to allow foreign material to enter from cassette tape slot.

Assembly is in the reverse order of disassembly

CAUTION: Use appropriate screws for each component, the screws for the audio unit are different from those the unified meter and A/C amp.
