Sunload Sensor

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

Measure voltage between unified meter and A/C amp. harness connector M89 terminal 50 (O) and ground. See Fig 1.

If NG, replace unified meter and A/C amp.

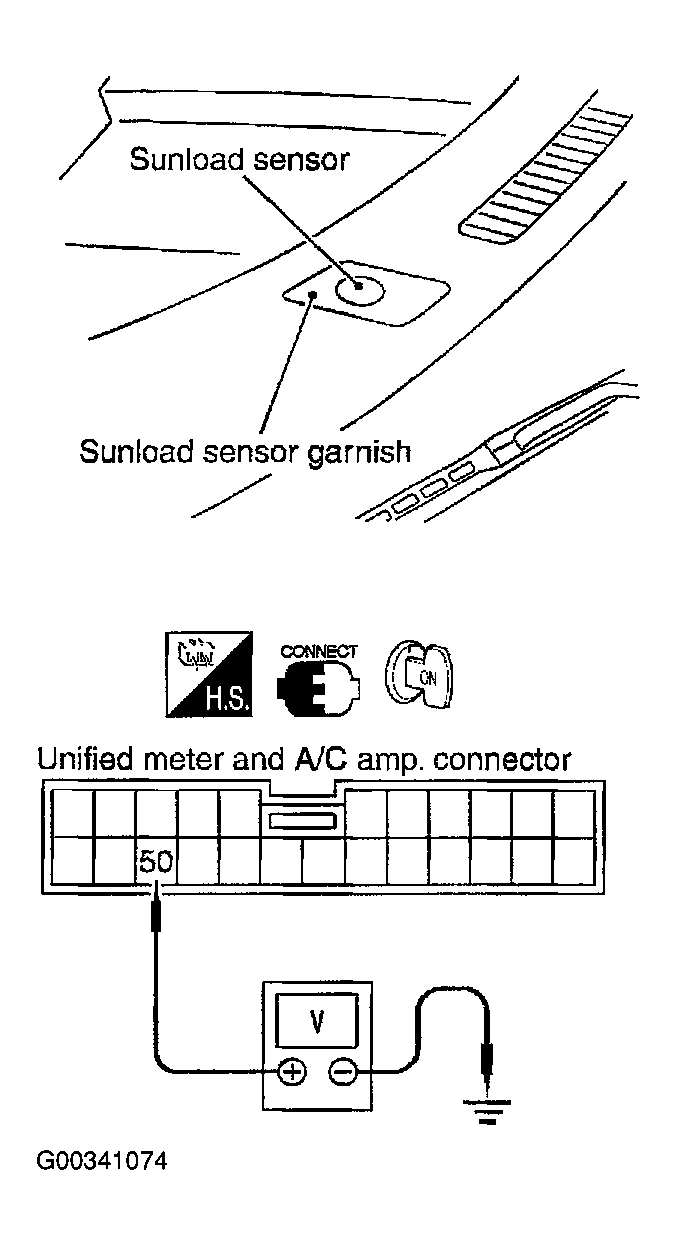

Fig 1: Measure Voltage Between Unified Meter And A/C Amp.

Courtesy of NISSAN MOTOR CO., U.S.A.

When checking sunload sensor, select a place where sun shines directly on it. Refer to Fig 2.

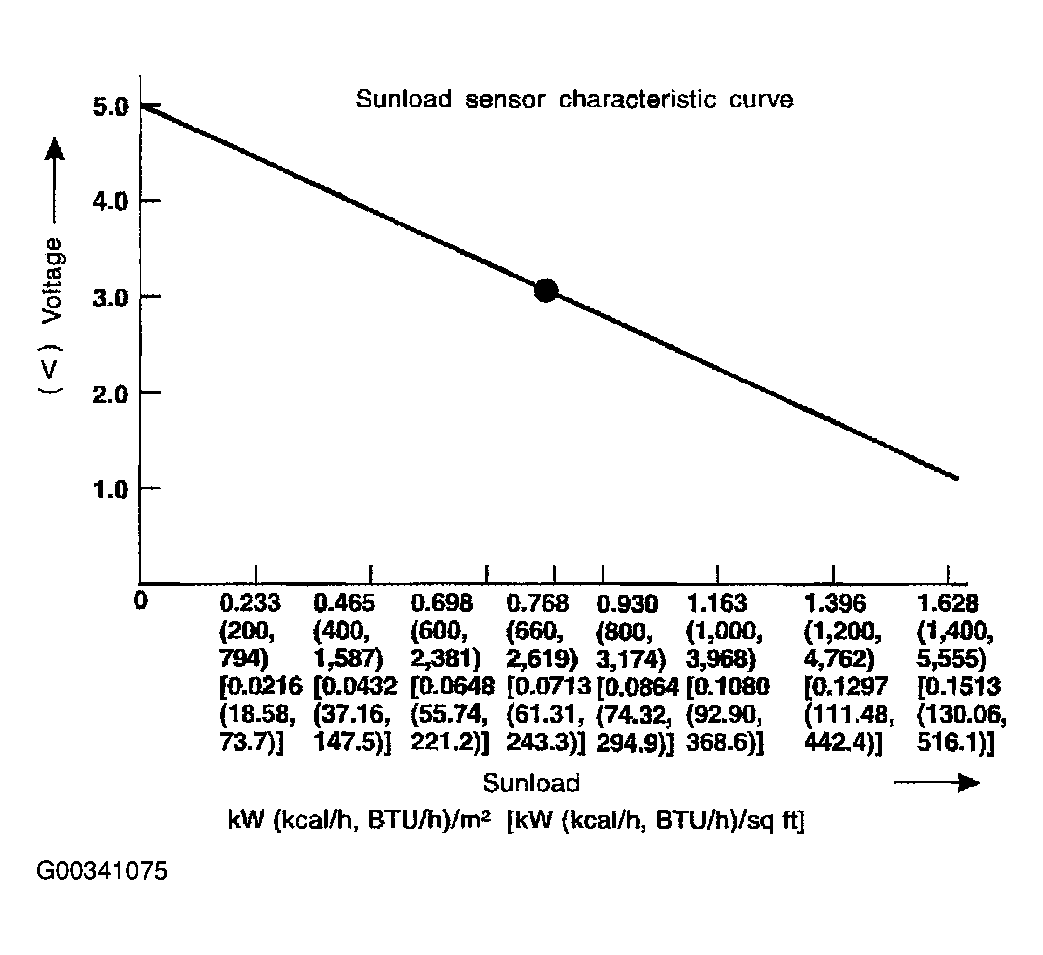

Fig 2: Sunload Sensor Characteristic Curve Table

Courtesy of NISSAN MOTOR CO., U.S.A.
