Potentio Temperature Control (PTC)

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

The PTC is built into the A/C and AV switch. It can be set at an interval of 0.5°C (1.0°F) in the 18°C (60°F) to 32°C (90°F) temperature range by pressing the temperature switch. The set temperature is displayed.

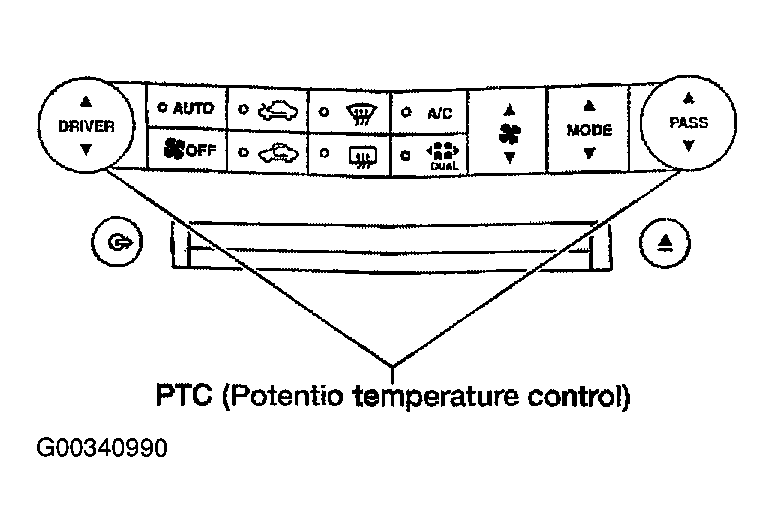

Fig 1: Identifying Temperature Switches
G00340990Courtesy of NISSAN MOTOR CO., U.S.A.
