Checking Temperature Increase

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

Press top of temperature switch (driver side) until 32°C (90°F) is displayed. See Fig 1.
Check for hot air at discharge air outlets.

If NG, go to trouble diagnosis procedure for "Insufficient Heating ".

If OK, Continue with next check.

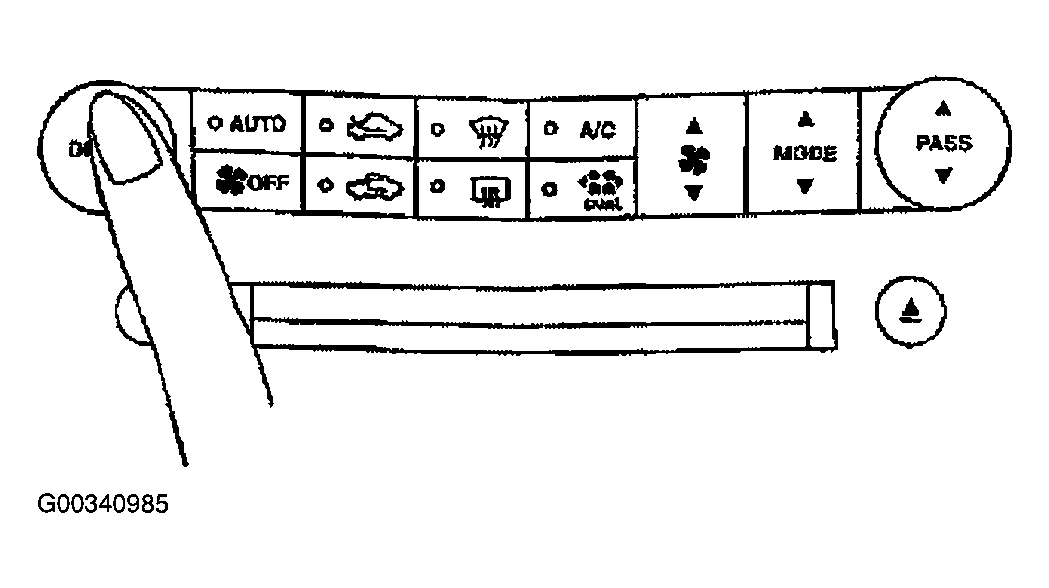

Fig 1: Checking Temperature Increase

Courtesy of NISSAN MOTOR CO., U.S.A.
