Check A/C Switch

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

Press A/C switch when AUTO switch is ON. See Fig 1.
A/C switch indicator will turn ON.
- Confirm that the compressor clutch engages (sound or visual inspection).

If NG, go to trouble diagnosis procedure for "Magnet Clutch Circuit ".

If OK, continue with next check.

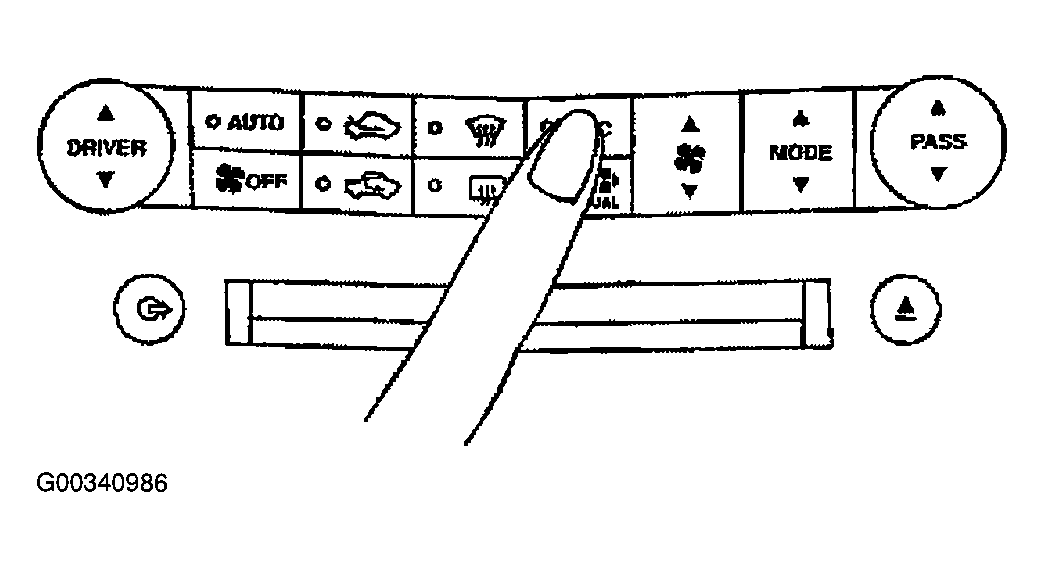

Fig 1: Checking A/C Switch

Courtesy of NISSAN MOTOR CO., U.S.A.
