Diagnostic Procedure For Magnet Clutch: Notes

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

SYMPTOM: Magnet clutch does not engage when A/C switch is ON.

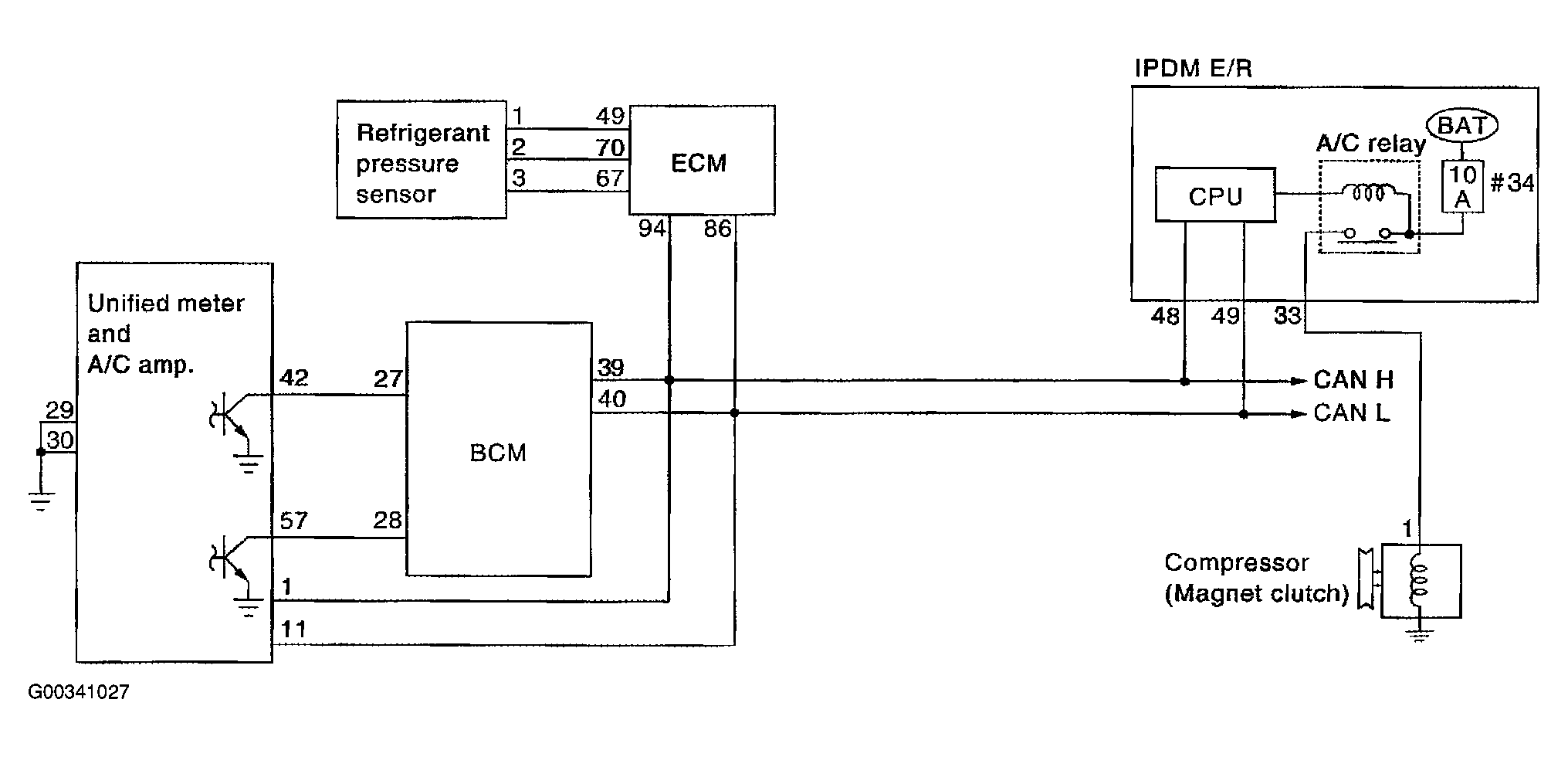

Fig 1: Magnet Clutch System Circuit

Courtesy of NISSAN MOTOR CO., U.S.A.
