Refrigerant Pressure Sensor

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

The refrigerant pressure sensor is attached to the condenser.

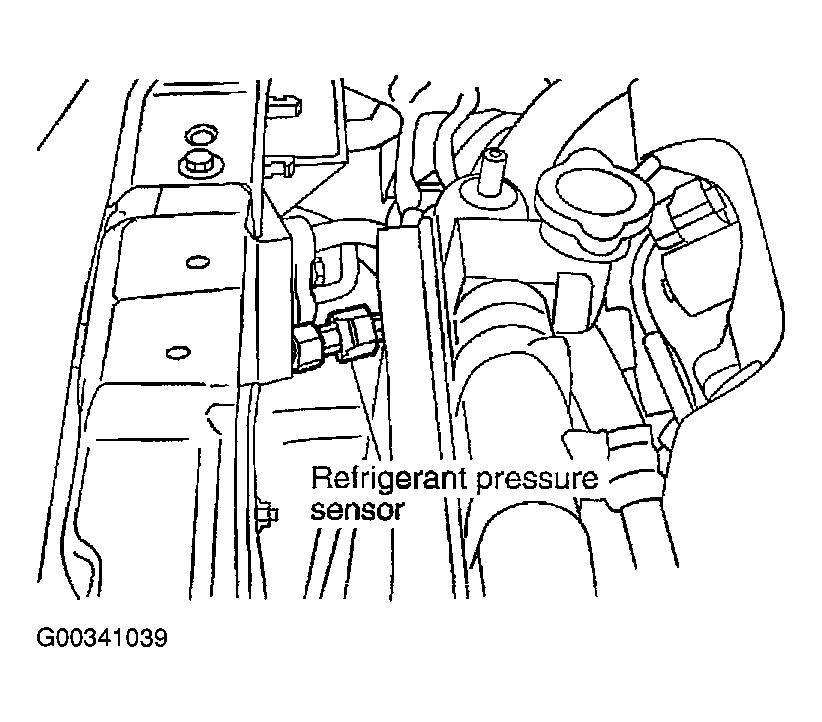

Fig 1: Locating Refrigerant Pressure Sensor
G00341039Courtesy of NISSAN MOTOR CO., U.S.A.
