High-pressure Side is Too Low and Low-pressure Side is Too High

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

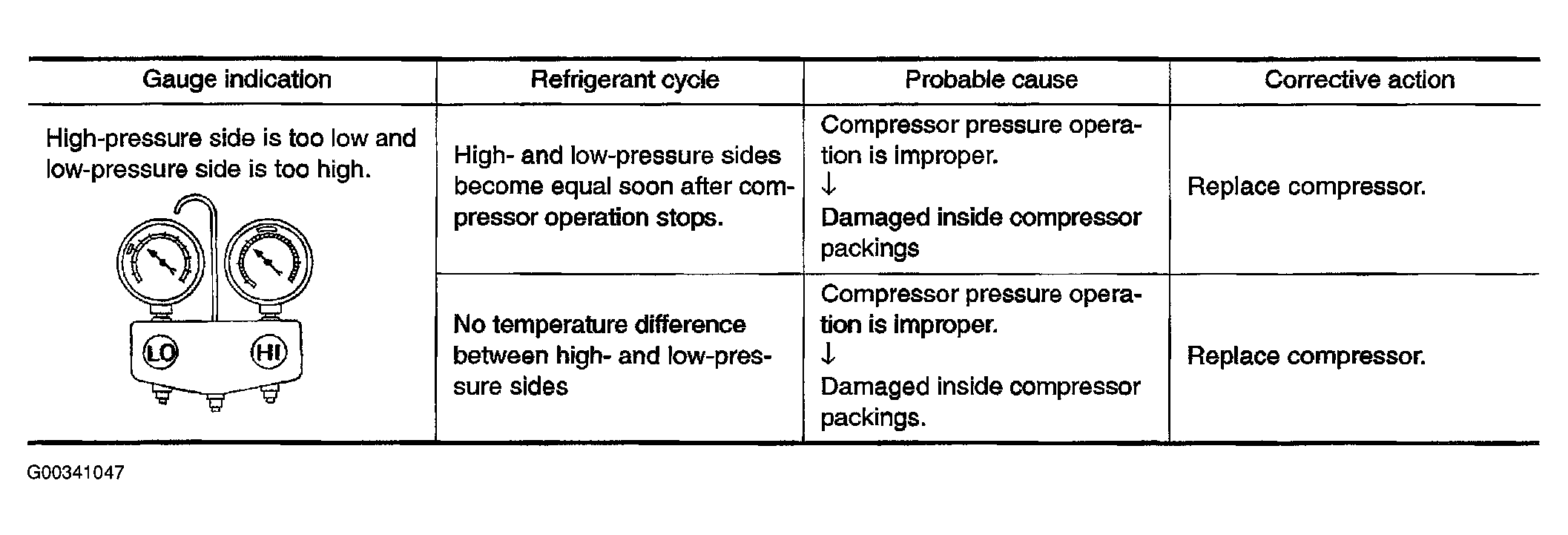

Fig 1: High-Pressure Side Is Too Low And Low-Pressure Side Is Too High

Courtesy of NISSAN MOTOR CO., U.S.A.
