Both High- and Low-pressure Sides are Too High

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

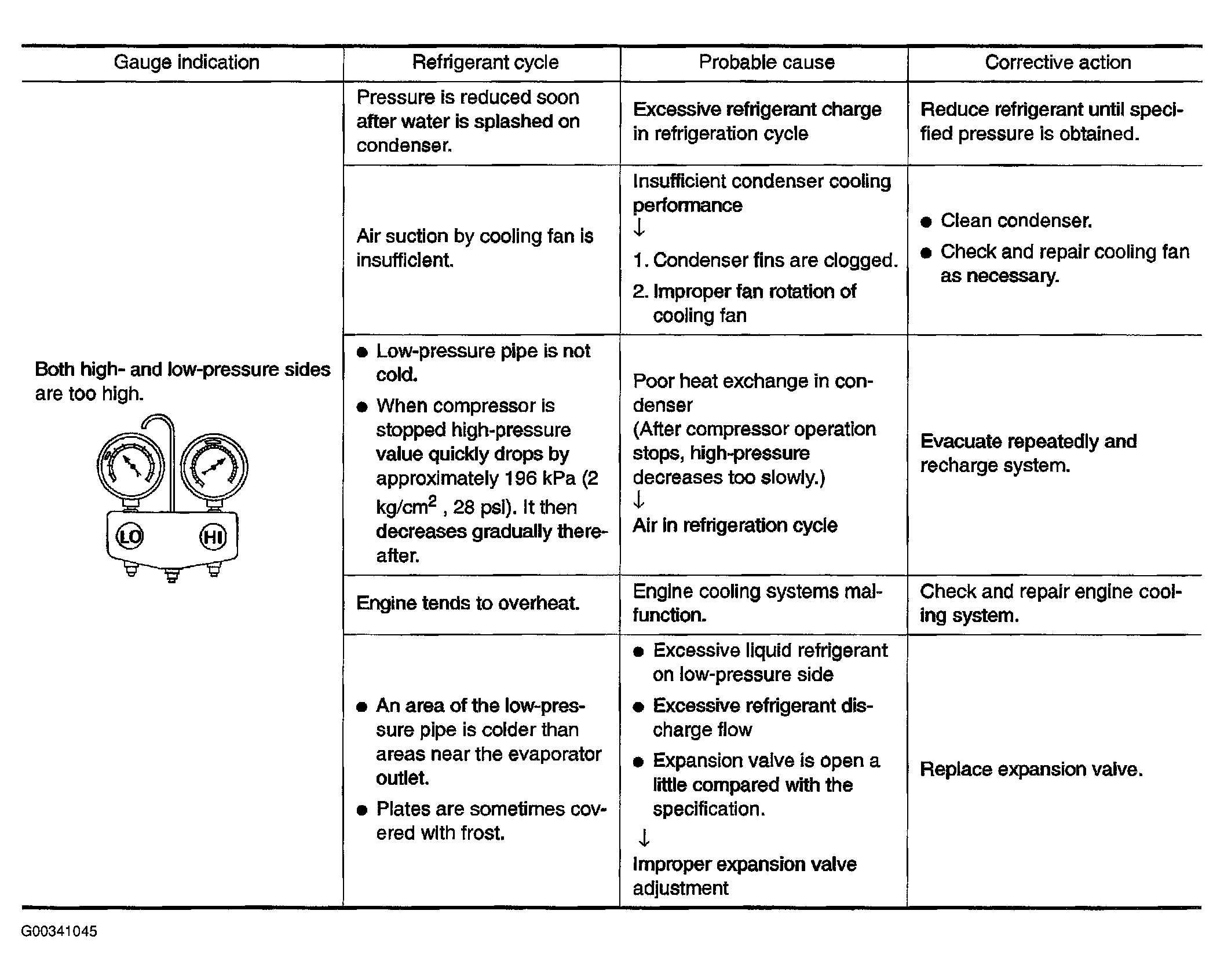

Fig 1: Both High- And Low-Pressure Sides Are Too High
G00341045Courtesy of NISSAN MOTOR CO., U.S.A.
