Component Description: Aspirator

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

The aspirator is located on driver's side of heater & cooling unit. It produces vacuum pressure due to air discharged from the heater & cooling unit, continuously taking compartment air in the aspirator.

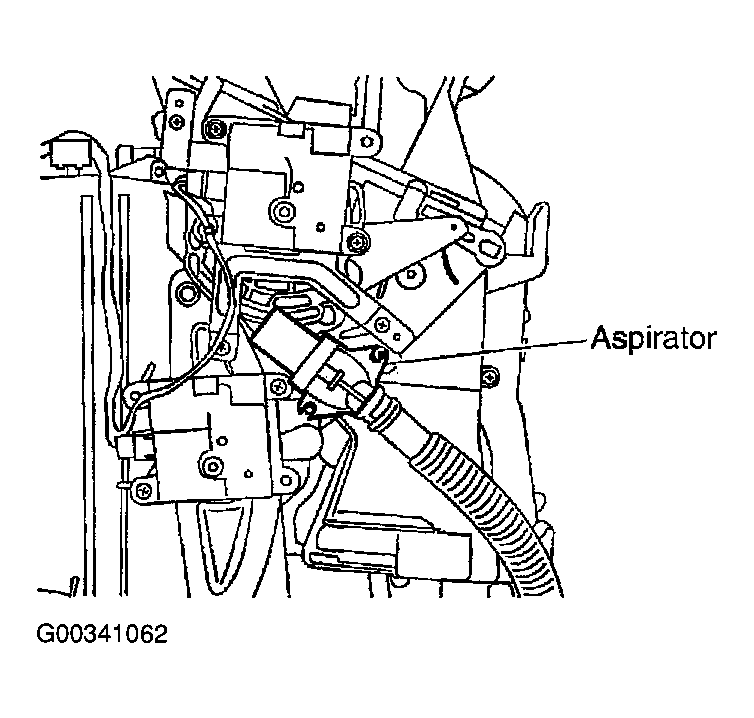

Fig 1: Locating Aspirator

Courtesy of NISSAN MOTOR CO., U.S.A.

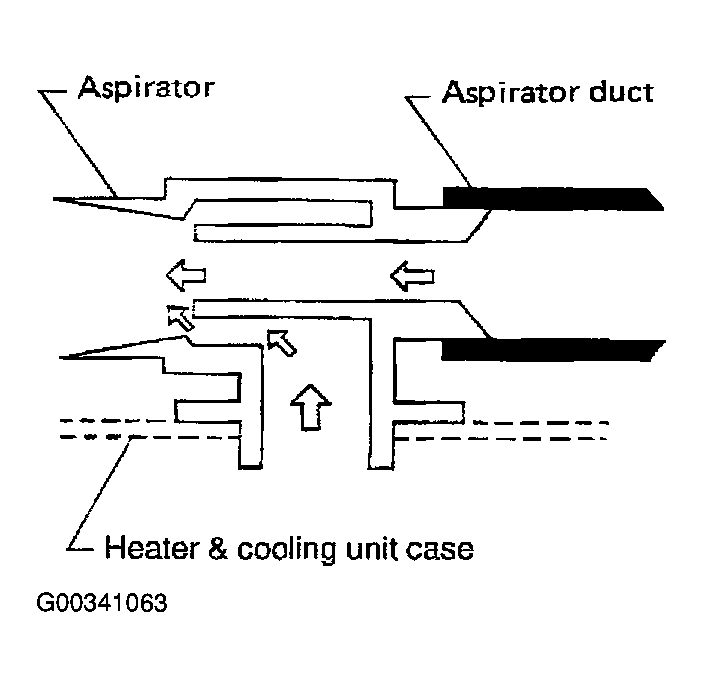

Fig 2: Aspirator Duct Components

Courtesy of NISSAN MOTOR CO., U.S.A.
