Operation Procedure

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Touch "AIR CONDITIONER" on "SELECT TEST ITEM" screen.

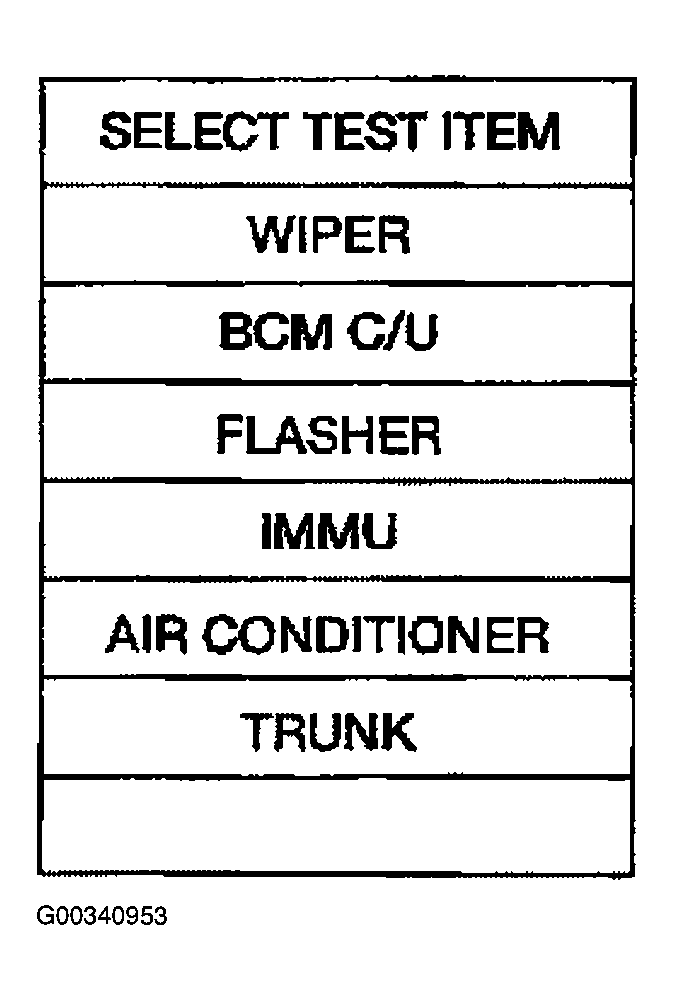

    Fig 1: CONSULT-II "SELECT TEST ITEM" Display
    G00340953Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Touch "DATA MONITOR" on "SELECT DIAG MODE" screen.

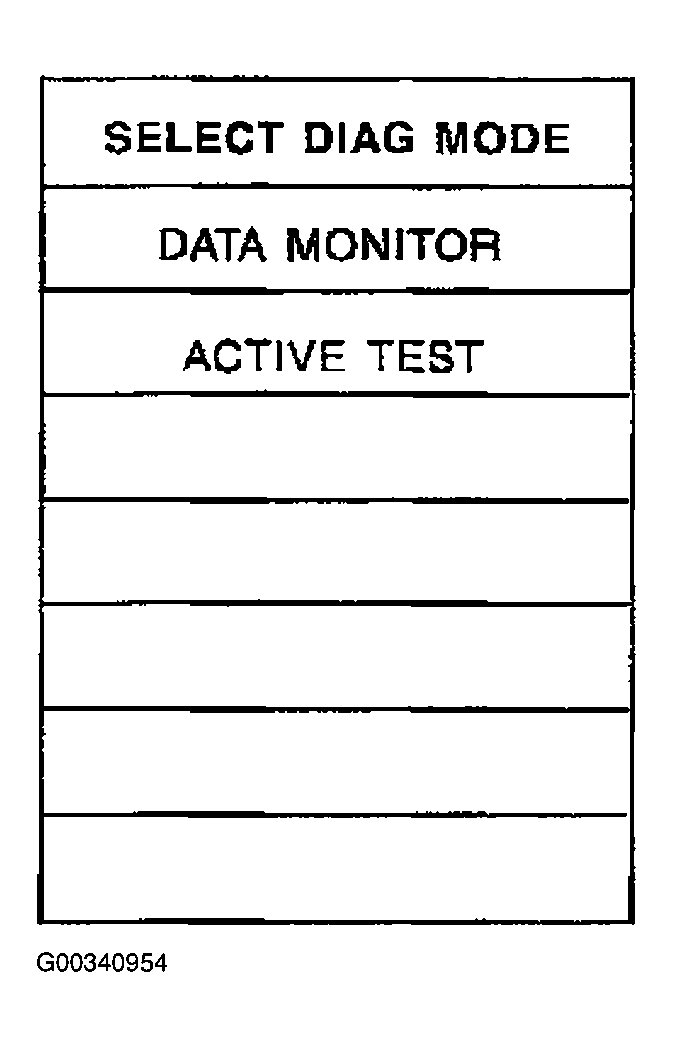

    Fig 2: CONSULT-II "SELECT DIAG MODE" Display
    G00340954Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Touch either "ALL SIGNALS" or "SELECTION FROM MENU" on "DATA MONITOR" screen.
    Data Monitor

    All signals Monitors all the items
    Selection from menu Selects and monitors the individual item selected.
  4. Touch "START".
  5. When "SELECTION FROM MENU" is selected, touch items to be monitored. When "ALL SIGNALS" is selected, all the items will be monitored.
  6. Touch "RECORD" while monitoring, then the status of the monitored item can be recorded. To stop recording, touch "STOP".

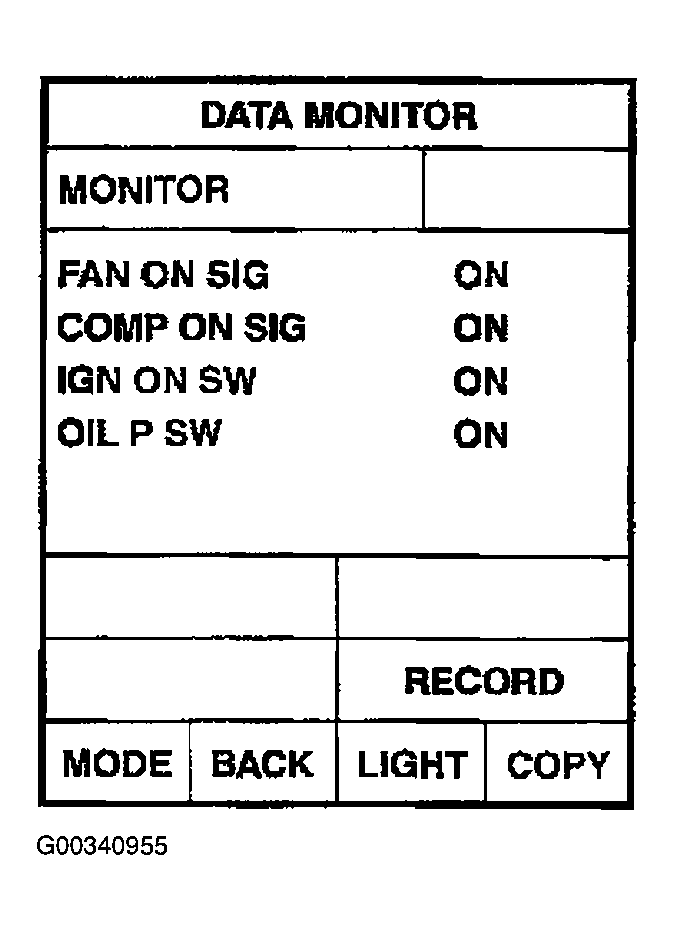

Fig 3: CONSULT-II "DATA MONITOR" Display
G00340955Courtesy of NISSAN MOTOR CO., U.S.A.
DISPLAY ITEM LIST

Monitor Item Name "Operation Or Unit" Contents
IGN ON SW "ON/OFF" Displays "IGN Position (ON)/OFF, ACC Position (OFF)" status as judged from ignition switch signal.
COMP ON SIG "ON/OFF" Displays "COMP (ON)/COMP (OFF)" status as judged from air conditioner switch signal.
FAN ON SIG "ON/OFF" Displays "FAN (ON)/FAN (OFF)" status as judged from blower fan motor switch signal.
