Component Parts and Harness Connector Location

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

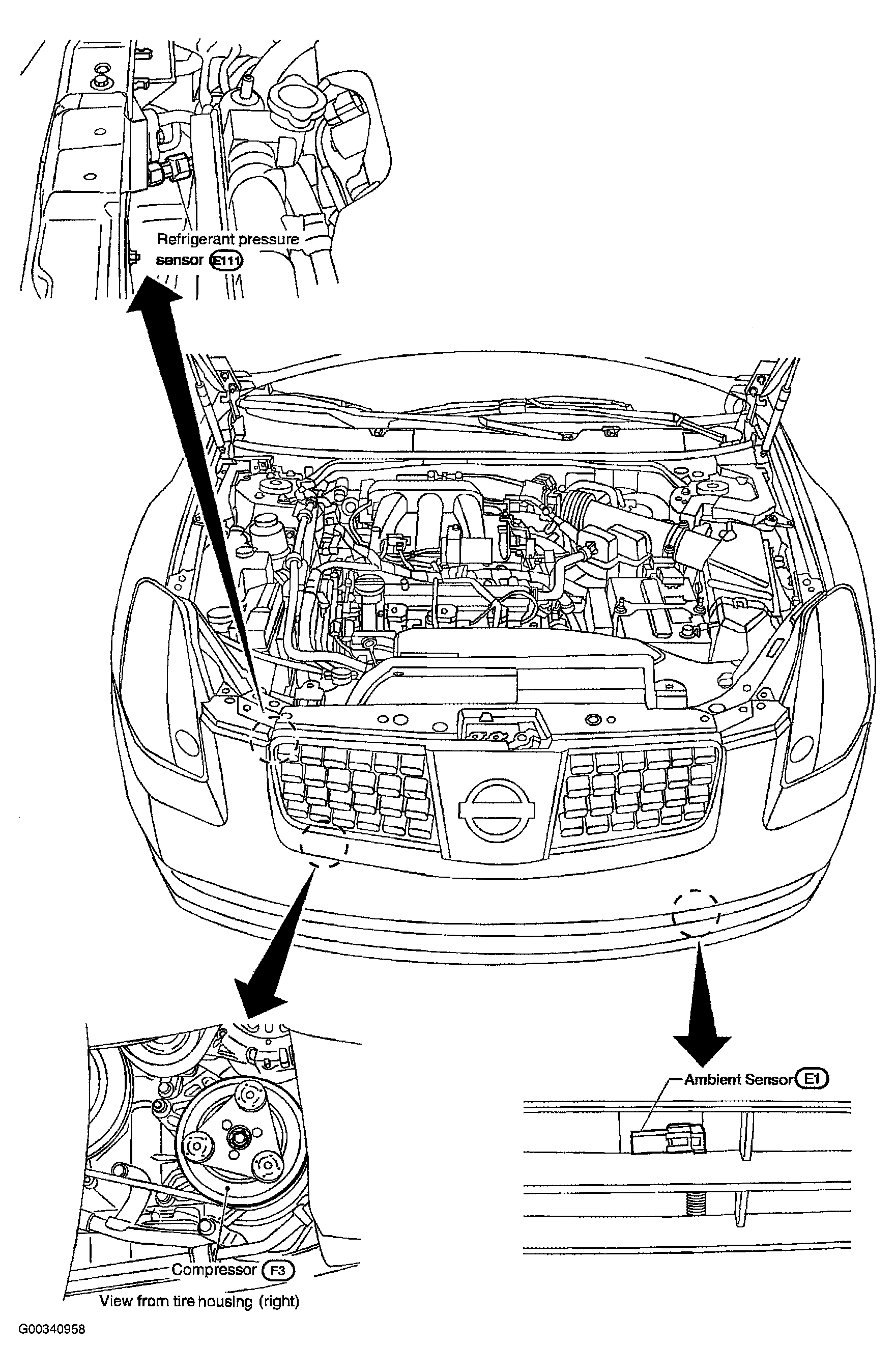

Fig 1: Engine Compartment
G00340958Courtesy of NISSAN MOTOR CO., U.S.A.

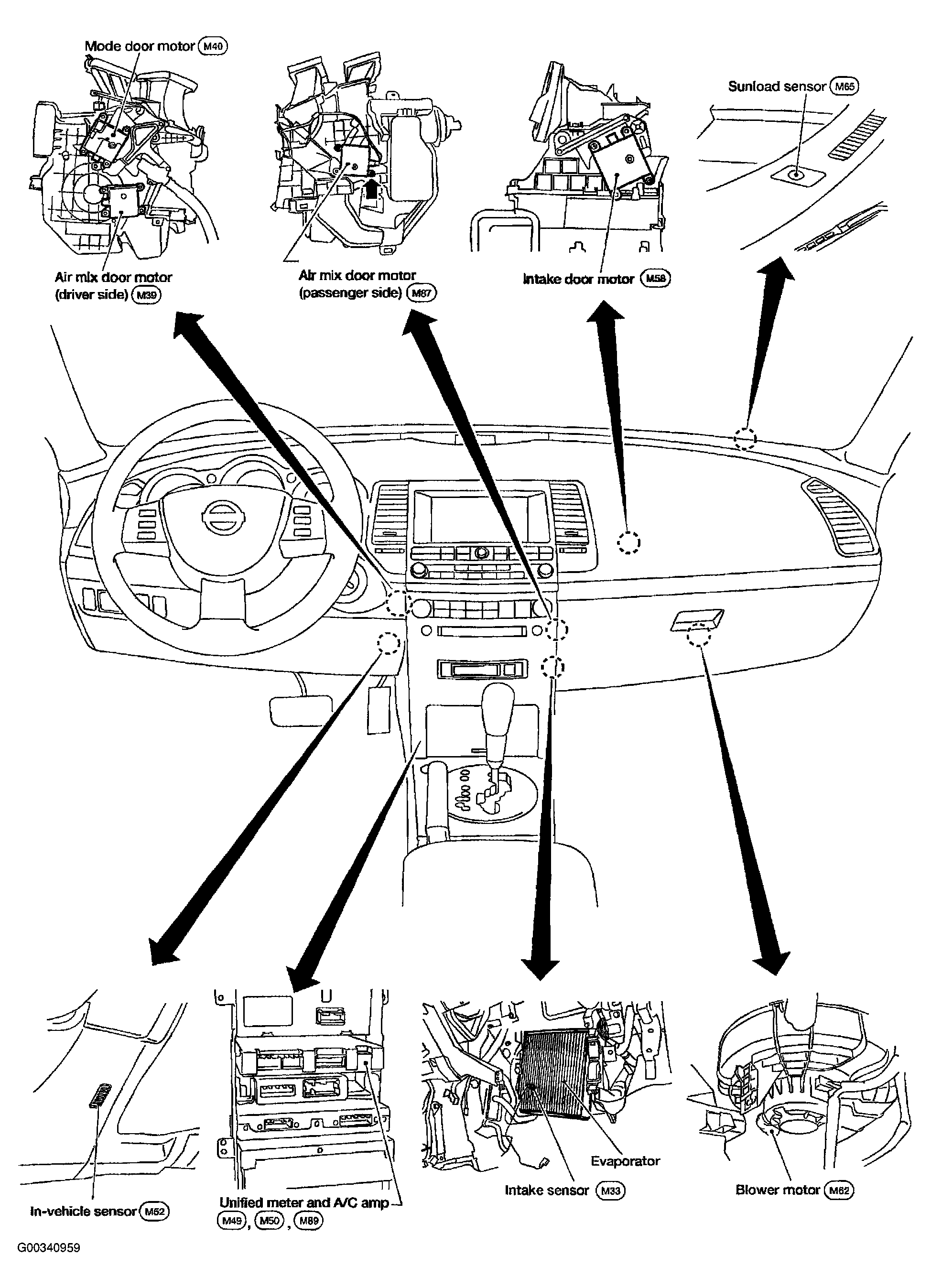

Fig 2: Passenger Compartment
G00340959Courtesy of NISSAN MOTOR CO., U.S.A.
