Diagnostic Procedure For Blower Motor: Notes

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

SYMPTOM: Blower motor operation is malfunctioning under starting fan speed control.

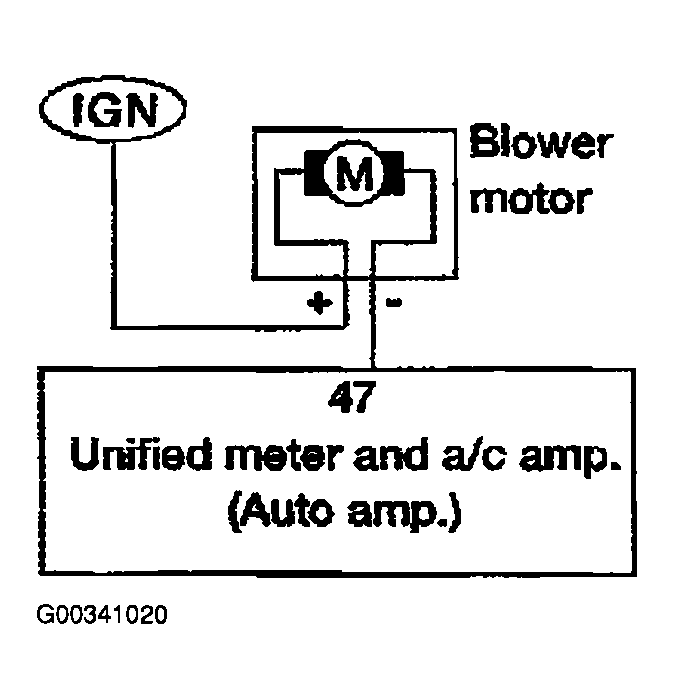

Fig 1: Blower Motor Circuit
G00341020Courtesy of NISSAN MOTOR CO., U.S.A.
