Auto Amp. Terminals and Reference Value: Notes

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

Measure voltage between each terminal and ground by following Terminals and Reference Value for unified meter and A/C amp.

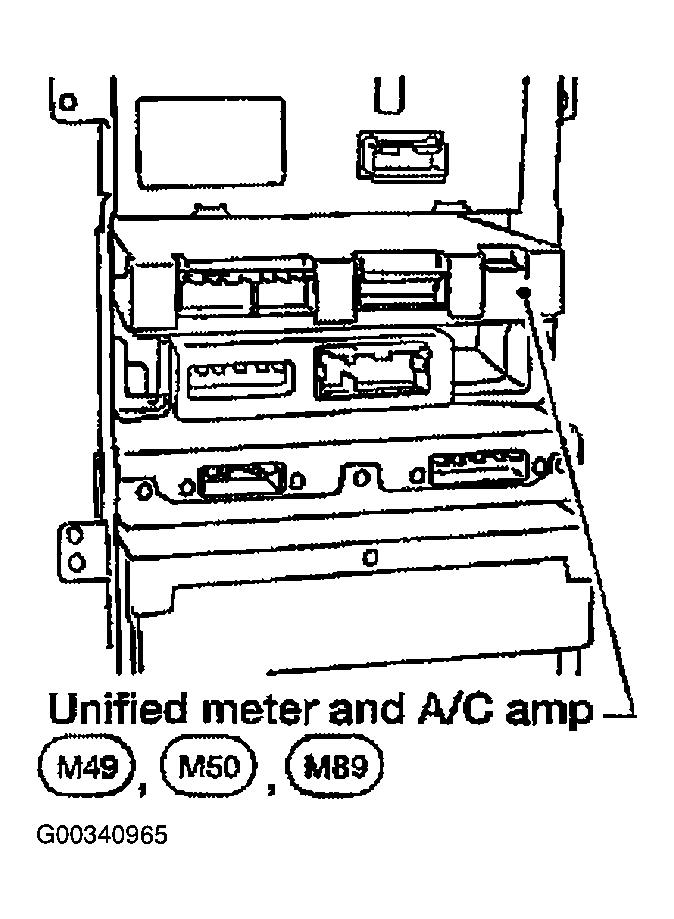

Fig 1: Identifying Unified Meter And A/C Amp. (Automatic Amplifier)
G00340965Courtesy of NISSAN MOTOR CO., U.S.A.

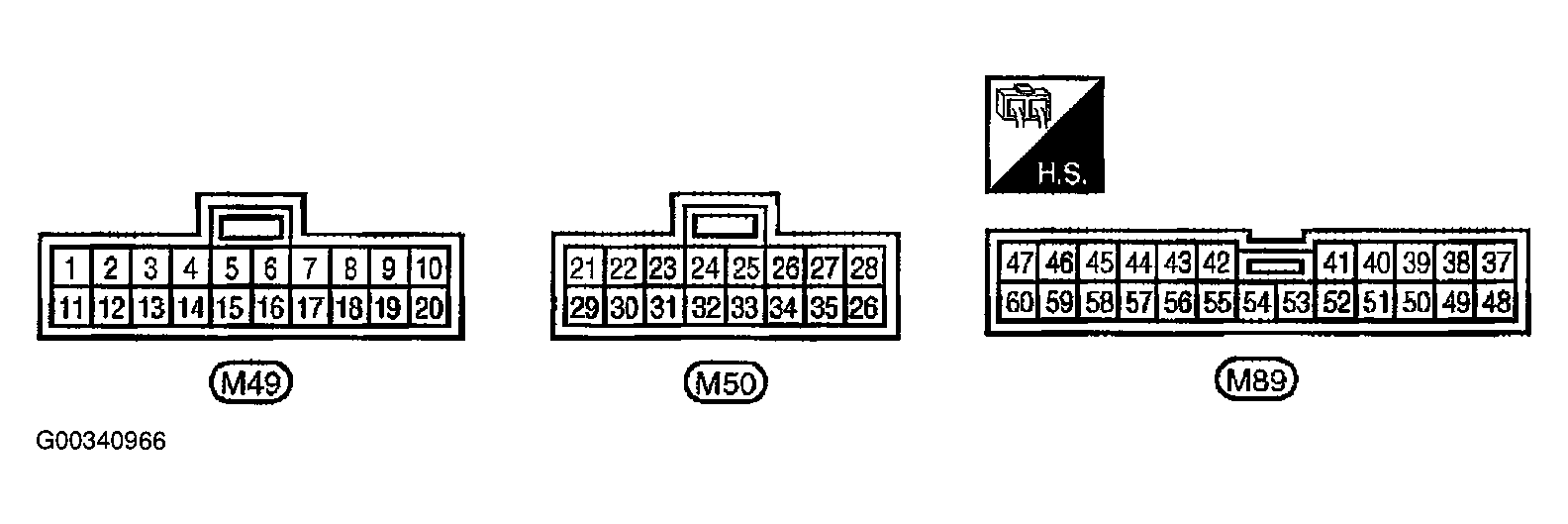

Fig 2: Identifying Unified Meter And A/C Amp. Connector Terminals
G00340966Courtesy of NISSAN MOTOR CO., U.S.A.
