Ambient Sensor

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

The ambient sensor is attached on the radiator core support (left side). It detects ambient temperature and converts it into a resistance value which is then input into the unified meter and A/C amp.

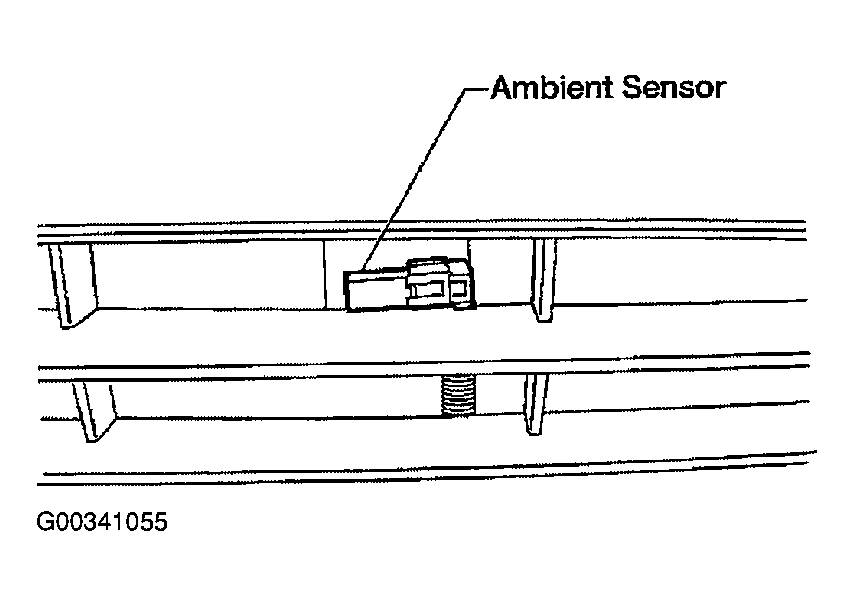

Fig 1: Locating Ambient Sensor
G00341055Courtesy of NISSAN MOTOR CO., U.S.A.
