14. Check Malfunctioning Door Motor Position Switch

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

Mode or (and) intake door motor PBR (s) is (are) malfunctioning. Refer to the following chart for malfunctioning code number. See Fig 1 and Fig 2 .

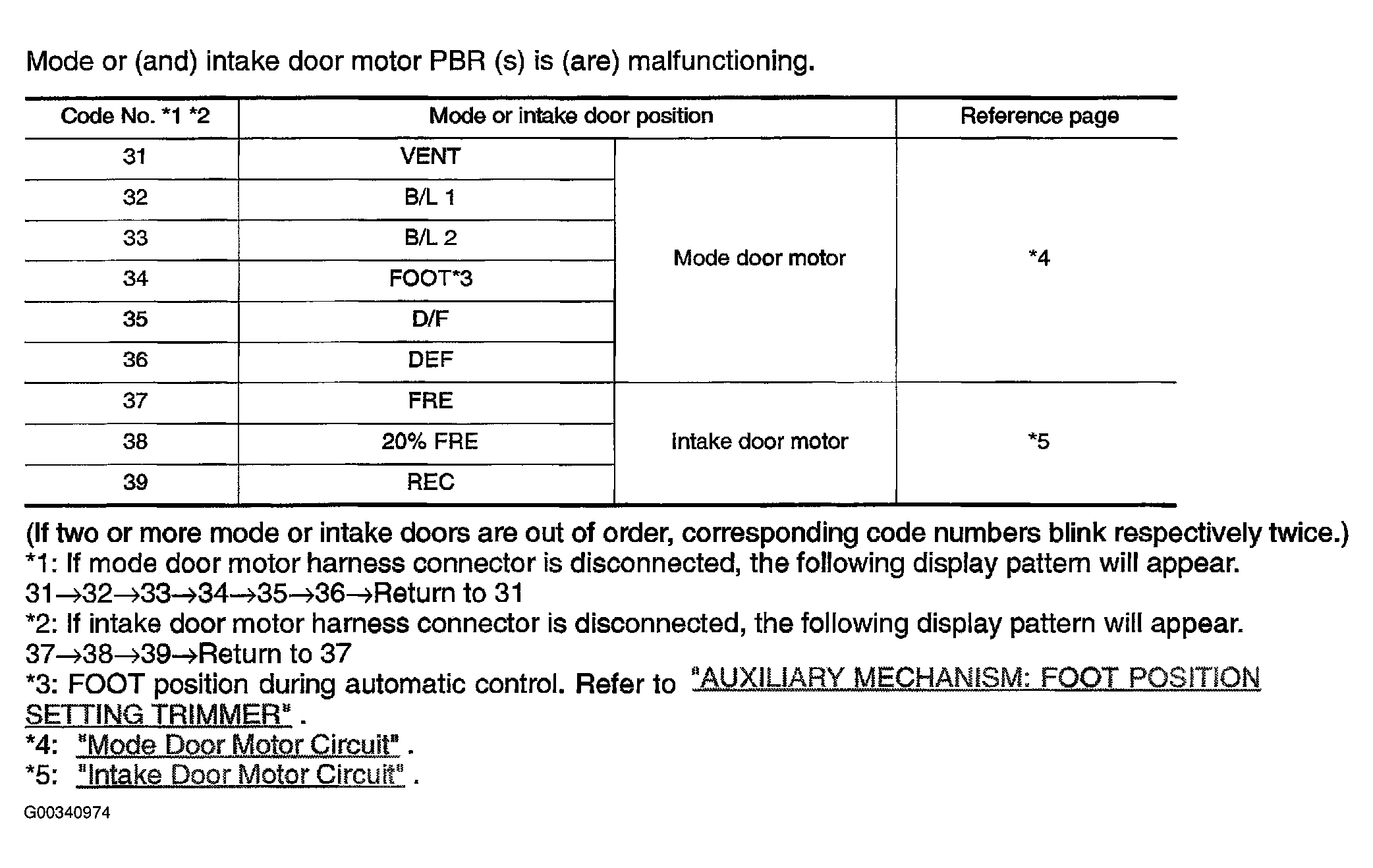

Fig 1: Malfunction Code List

Courtesy of NISSAN MOTOR CO., U.S.A.

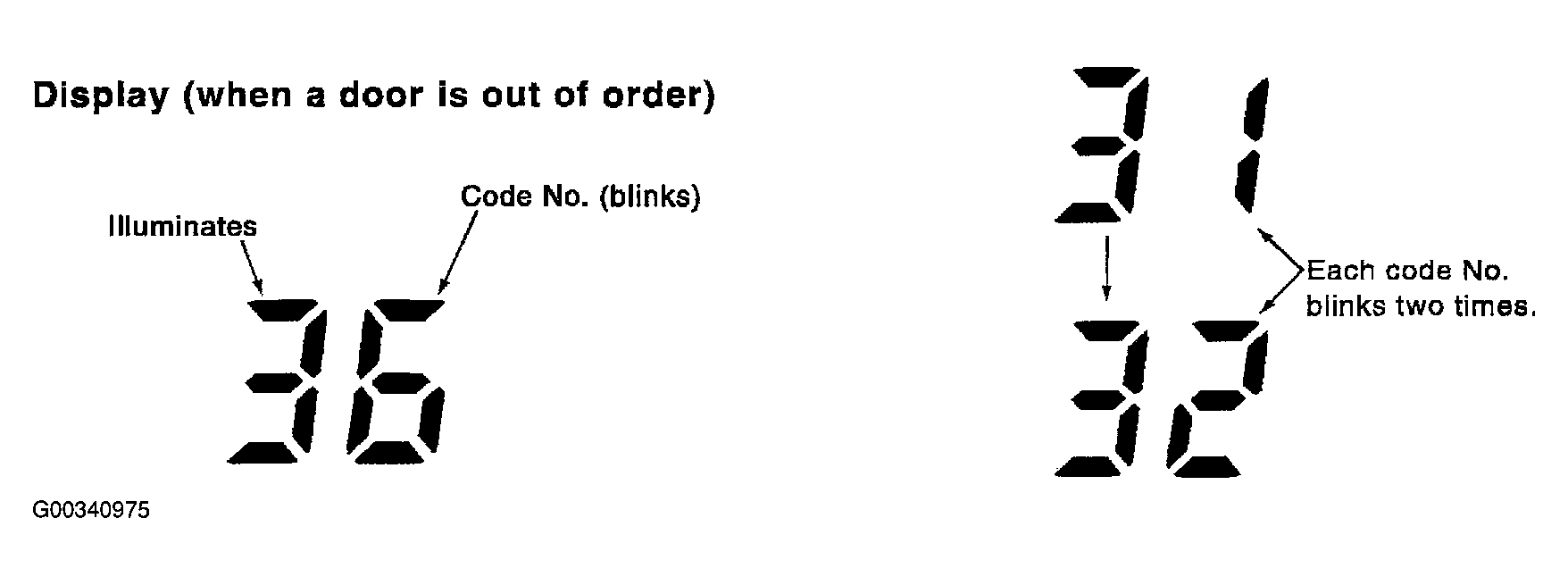

Fig 2: Malfunction Code Display

Courtesy of NISSAN MOTOR CO., U.S.A.

INSPECTION END
