Auxiliary Mechanism: Inlet Port Memory Function
WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
When ignition key is turned from OFF to ON, inlet port can be set to AUTO or manual.
Operating procedures for this trimmer are as follows:
- Begin Self-diagnosis STEP 5 mode. Refer to "A/C System Self-diagnosis Function "and see Fig 1.
- Press top of fan control switch to set system in auxiliary mode.
- Display shows 61 in auxiliary mechanism. It takes approximately 3 seconds.

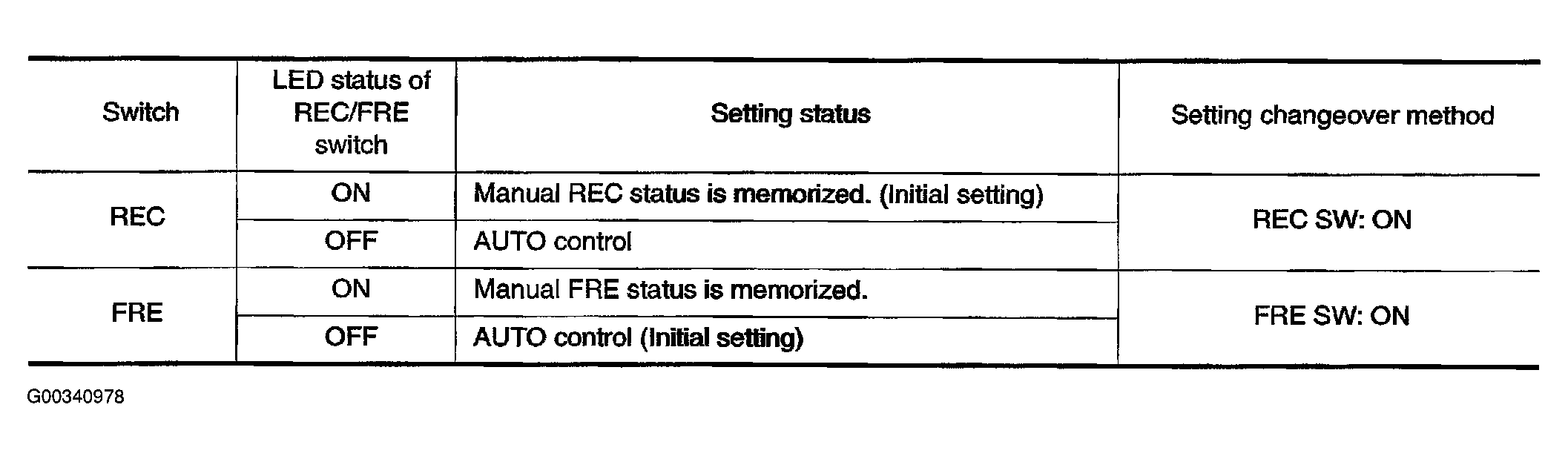

- Press the recirculation (REC) and fresh (FRE) switch as desired.
