Auxiliary Mechanism: Foot Position Setting Trimmer
WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

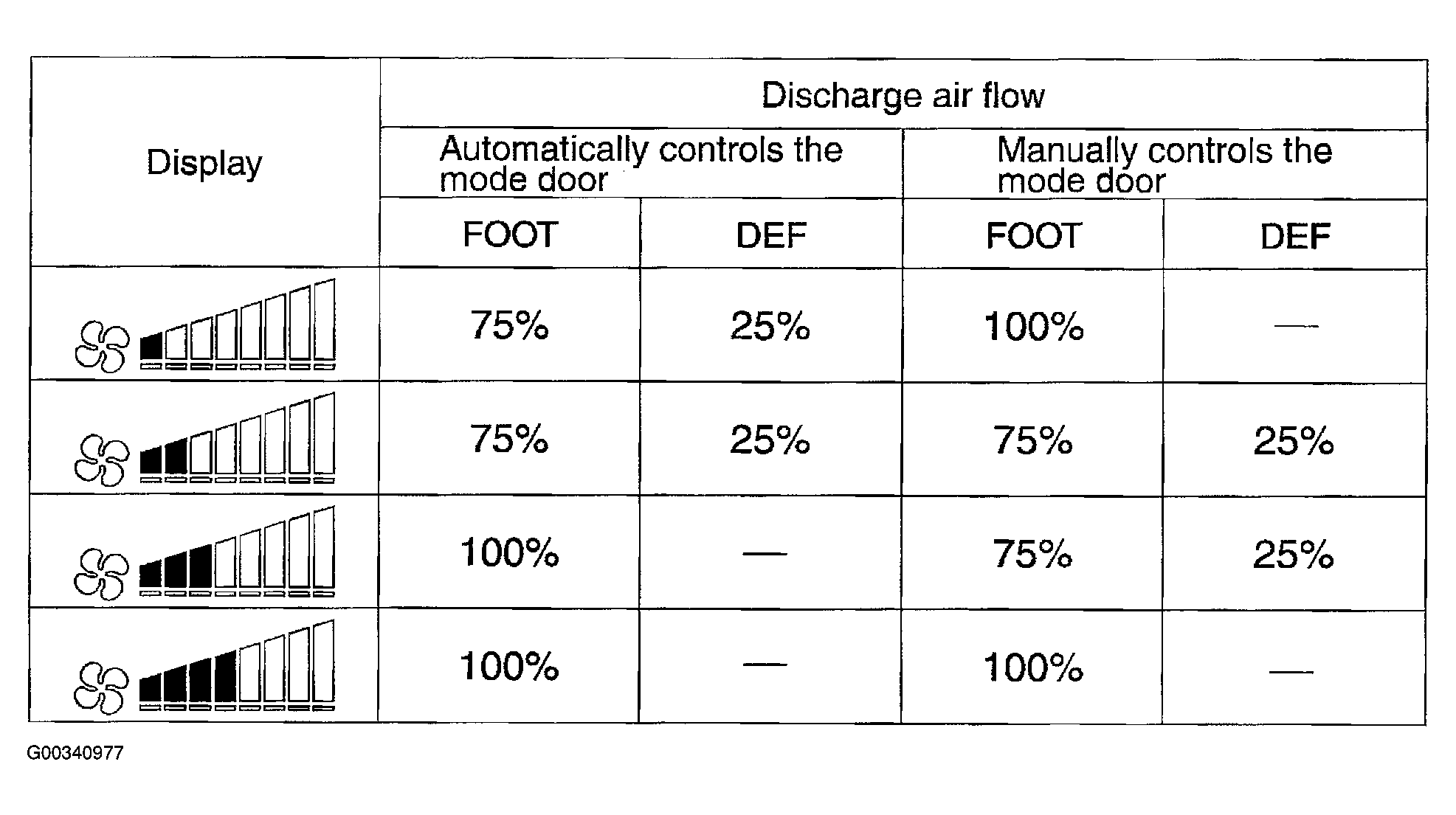

Air distribution ratio in FOOT mode can be set.
Operating procedures for this trimmer are as follows:
- Begin Self-diagnosis STEP 5 mode. Refer to "A/C System Self-diagnosis Function "and see Fig 1.
- Press top of fan control switch to set system in auxiliary mode.
- Display shows 61 in auxiliary mechanism. It takes approximately 3 seconds.
- Press the mode switch as desired.
