Removal and Installation: Removal

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the sunload sensor garnish.
  2. Disconnect the connector.
  3. Release the sunload sensor tabs and then remove it from the garnish.

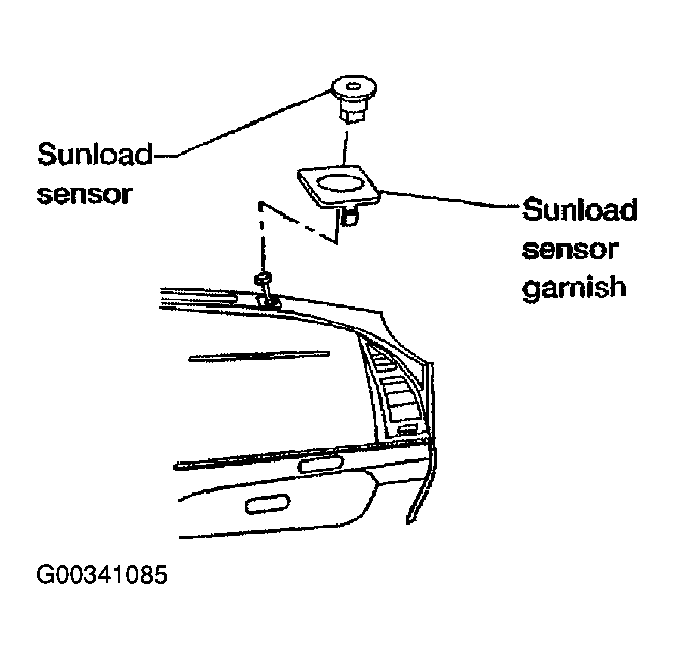

    Fig 1: Locating Sunload Sensor
    G00341085Courtesy of NISSAN MOTOR CO., U.S.A.
