Removal and Installation for Refrigerant Pressure Sensor
WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
- Discharge the refrigerant. Refer to "HFC-134a (R-134a) Service Procedure ".

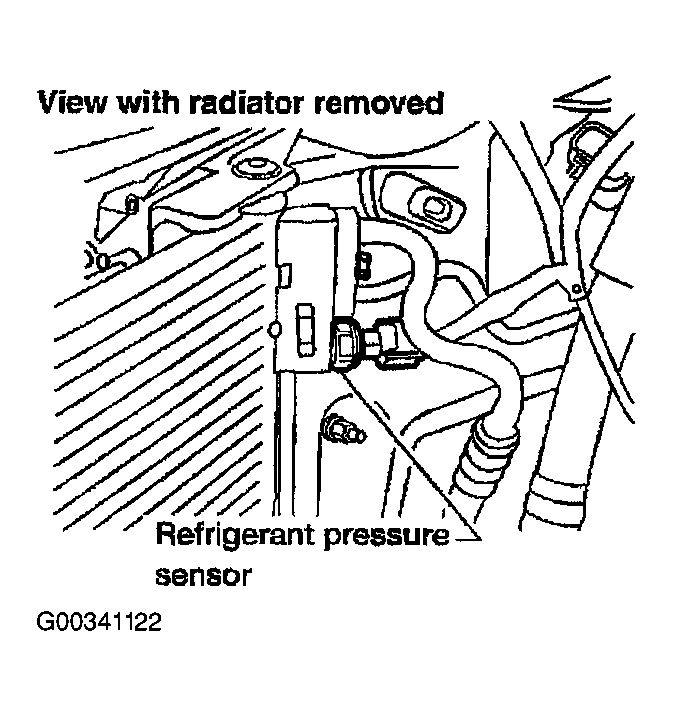

- Disconnect the refrigerant pressure sensor connector and remove the refrigerant pressure sensor from condenser.
CAUTION:
- Please be careful not to damage the condenser fins.
- Apply compressor oil to the O-ring of the refrigerant pressure sensor when installing it.
- Tightening torque : 9.8 - 11.7 N.m (1.0 - 1.2 kg-m, 7.3 - 8.6 ft-lb)
