Removal and Installation: Removal

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the lower driver instrument panel assembly. Refer to "LOWER DRIVER INSTRUMENT PANEL under REMOVAL AND INSTALLATION under GAUGES & INSTRUMENT PANELS article in ACCESSORIES & EQUIPMENT".
  2. Disconnect the mode door motor connector.
  3. Remove the mode door motor screws and then remove mode door motor.

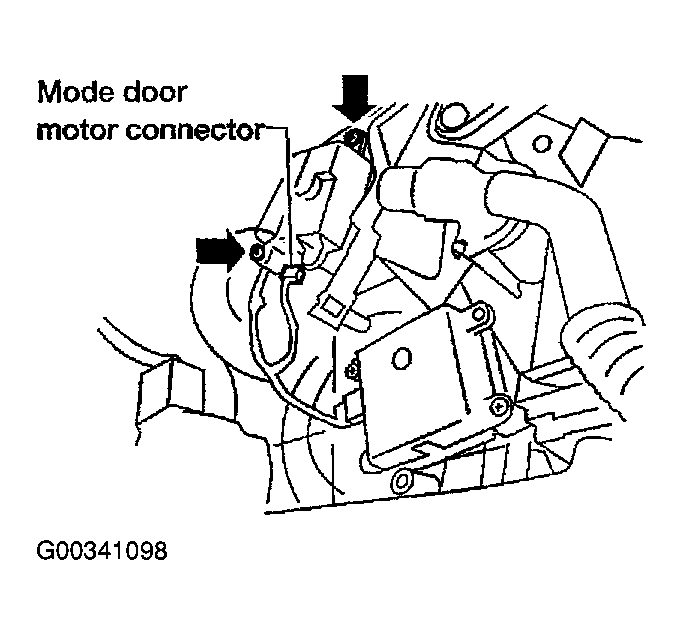

    Fig 1: Locating Mode Door Motor Connector
    G00341098Courtesy of NISSAN MOTOR CO., U.S.A.
