Removal and Installation: Removal

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove lower driver instrument panel assembly. Refer to "LOWER DRIVER INSTRUMENT PANEL under REMOVAL AND INSTALLATION under GAUGES & INSTRUMENT PANELS article in ACCESSORIES & EQUIPMENT".
  2. Remove the in-vehicle sensor retaining screw and then remove the in-vehicle sensor.

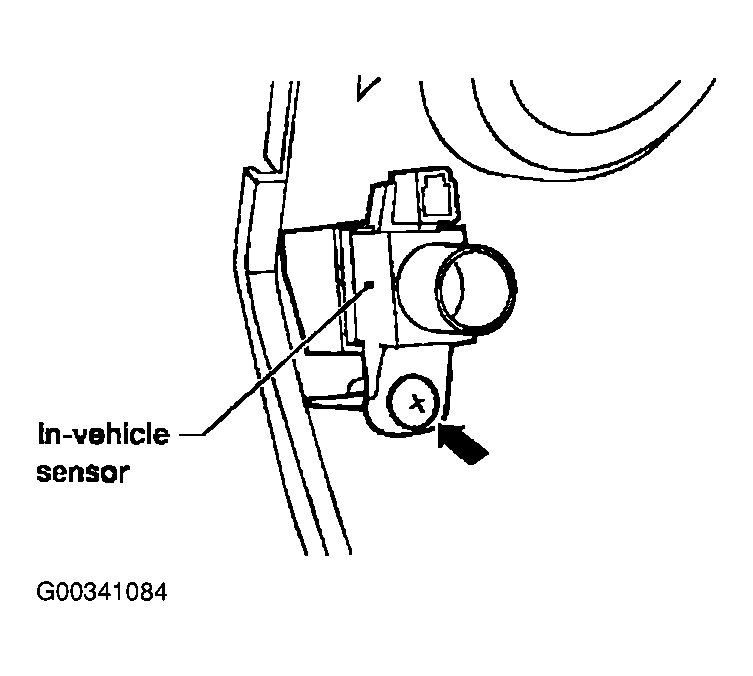

    Fig 1: Locating In-Vehicle Sensor
    G00341084Courtesy of NISSAN MOTOR CO., U.S.A.
